Drill depth: 300m
Drill diameter: 500mm
Power: 105kw
Mud pump: 850/2A
Single rope lifting capacity: 40kn
Air compressor: 30m3 per min
After-sales Service Provided: Engineers available to service machinery overseas
Characteristic and usage:

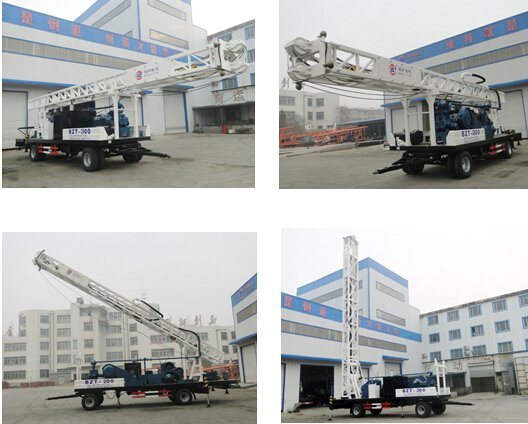

-BZT300SZ trailer-mounted water well drilling rig can be pulled by tractor and other motor tractor, so it is convenient to move.
-The power is an independent diesel engine, and the winch and the turntable working through the mechanical drive.
-The drilling rig has four hydraulic jacks; they can act together or separately to make balance and the rear jack can stretch out which keep the balance.With hydraulic tower, easy to operate.
-The main parts eg. The winch, turntable, gearbox, tower, chassis are made by ourself; the performance are stability.
-The drilling rig can be used in the filed of high-rise building, bridge,mine hole, port, foundation, water well, ground source heat pump.
-The drilling rig easy operation, easy to repair,high efficient and is the good choice of customer.
