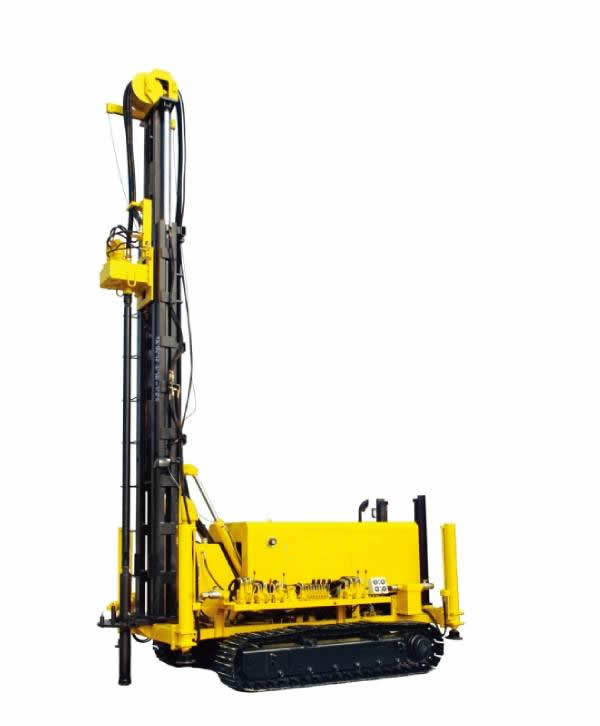

Kaishan KW10 KW20 KW30 crawler water well drillers

You are here: Home » Product List » Drilling Rigs & Rock Drills » Water Well Drilling Rigs » Kaishan KW10 KW20 KW30 crawler water well drillers

Product Category

Related Products

PRODUCT DETAIL

Model: KW10 KW20 KW30
Trademark: Kaishan
Origin: China
Transportation: 1
Payment: T/T

KW10 Drilling Machine Matched With LGCY-18/17 Screw Air Compressor;

KW20 Crawler Water Well Drilling Rig Matched With LGCY-26/20 Compressor;

KW30 Drill Rig Matched With LGCY-33/25 Diesel Portable Screw Air Compressor.

All compressors are cummins engine.

Kaishan brand crawler drill series products are special designed drilling equipment which can be widely used to drill deep holes in many areas such as quarry, railway construction, road construction, small-medium mine and so on. Used compressed air as power and equiped with hammer the crawler drill can drill blast holes, break holes, anchoring holes in different directions.

drilling equipment crawler water well drill rig kw20 water well drilling rig kw30 water well drilling rigs kw10 water well drilling rig

Model No:		KW10	KW20	KW30
Dia.hole (mm)		Ф115-180	Ф115-254	Ф168-300
Drilling depth (mm)		120m	200m	300m
Air consumption:		16-30 m3/min	16-35 m3/min	16-40 m3/min
Working pressure:		10.5-24.6 bar	10.5-24.6 bar	10.5-24.6 bar
Ground clearance		245mm	280mm	280mm
Support cylinder stroke		460mm	1000mm	/
Feed cylinder stroke		1750mm	2400mm	/
Feed power		30000N	45000N	50000N
Lift power:		70000 N	95000N	150000N
Speed of rotator:	Low speed	50 rpm	60 rpm	43/52/69rpm
	High speed	100 rpm	105 rpm	85/102/125rpm
Rotation torque:		3200N.m	4000N.m	High 8000N.m,Low 4000N.m
Travellingspeed:		0-2.5 km/h	0-2.5 km/h	0-2.5 km/h
Climb capacity:		15°	25°	25°
Engine
Engine model		YC4D80	YC6B125-K10	YC6B150Z-T21
power		58KW/80HP	92KW/125HP	110KW/150HP
Rotation speed		2400rpm	2200rpm	2100rpm
Matching Drilling components
Hammer		DHD360(DTH380)
Dia. Of rod		Φ89mm	Φ79mm,Φ89mm	Φ89mm-Φ102mm
Length of rod		3m	3m	3m/4m
Dia. Of bit		Φ115-180mm	Φ115-254mm	Φ168-300mm
Weight (kg)		6500kgs	8500kgs	9500kgs
Dimension (mm)		6000×2300×2500	5100×2300×2850	5200×2300×3200
