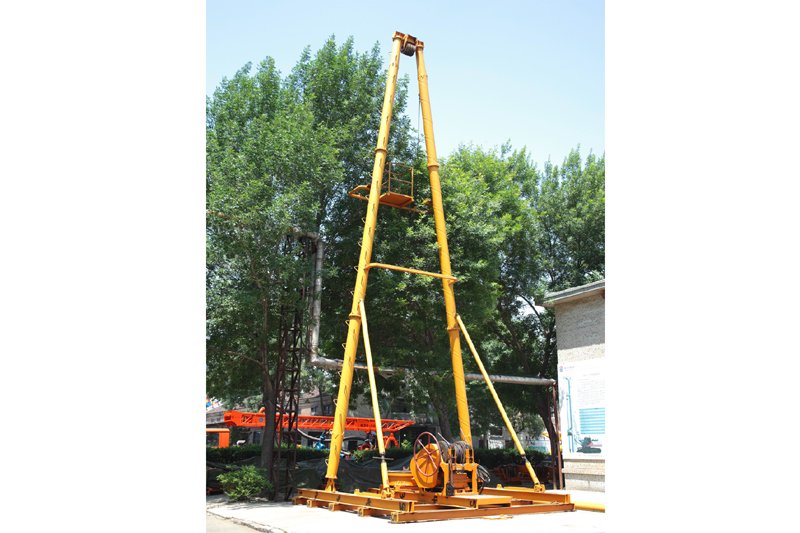

YT-600 engineering construction, mining and water well drilling rig

You are here: Home » Product List » Drilling Rigs & Rock Drills » Water Well Drilling Rigs » YT-600 engineering construction, mining and water well drilling rig

Product Category

Related Products

PRODUCT DETAIL

Model: YT-600
Trademark: Zuanshan
Origin: China
Transportation: 6
Payment: T/T

YT600 type drilling rig adopts single hoist set, large lifting capacity, large module, hyperboloid turntable, ensuring the balance of the rig in operating, large torque and using long time, it can used in soil and rock stratum. This type of driller is used in construction of high-rise building, highway and road, mining, ports, dams and deep well drilling.

If you want to learn more information of our water well drilling rigs, check the following links please:

BZC200CA truck-mounted drilling rig BZC350ACZ water well drilling rig trailer water drill rig 400m rotary drill rig BZCT600 trailer mounted water well drilling rig

drill rig water well drilling rig drill machine water hydraulic drill rig small water drill rig

Technical parameters
Drilling depth (m)	600	80
Drilling diameter (mm)	500	2000
Inner diameter of turntable (mm)	500
Turntable rotation speed (forward and reverse) (r/min)	37, 57, 85
Rated output torque of turntable (KN.m)	20
Hoist lifting capacity (single rope) (KN)	40
Bearing capacity of hydrant (KN)	240
Matching power of main machine (KW)	45
Working condition	Use A13 or A15 or A18 type frame
The weight of whole machine (kg)	3380
