Mini Waterwell Drill Machine YLQ150A 120M Portable Small Water Well Drilling Rig
Mini Waterwell Drill Machine YLQ150A 120M Portable Small Water Well Drilling Rig
Mini Waterwell Drill Machine YLQ150A 120M Portable Small Water Well Drilling Rig
Mini Waterwell Drill Machine YLQ150A 120M Portable Small Water Well Drilling Rig
Mini Waterwell Drill Machine YLQ150A 120M Portable Small Water Well Drilling Rig
Mini Waterwell Drill Machine YLQ150A 120M Portable Small Water Well Drilling Rig
Share to:

Mini Waterwell Drill Machine YLQ150A 120M Portable Small Water Well Drilling Rig

Quantity:
Inquire Add to Basket
  • YLQ150A
  • Zuanshan
  • China
  • 1
  • T/T
Portable cheap mini water well drilling rig YLQ150:

1.OEM is acceptable.
2.Kaishan group is drilling rig Industry leading manufacturer & supplier from China.

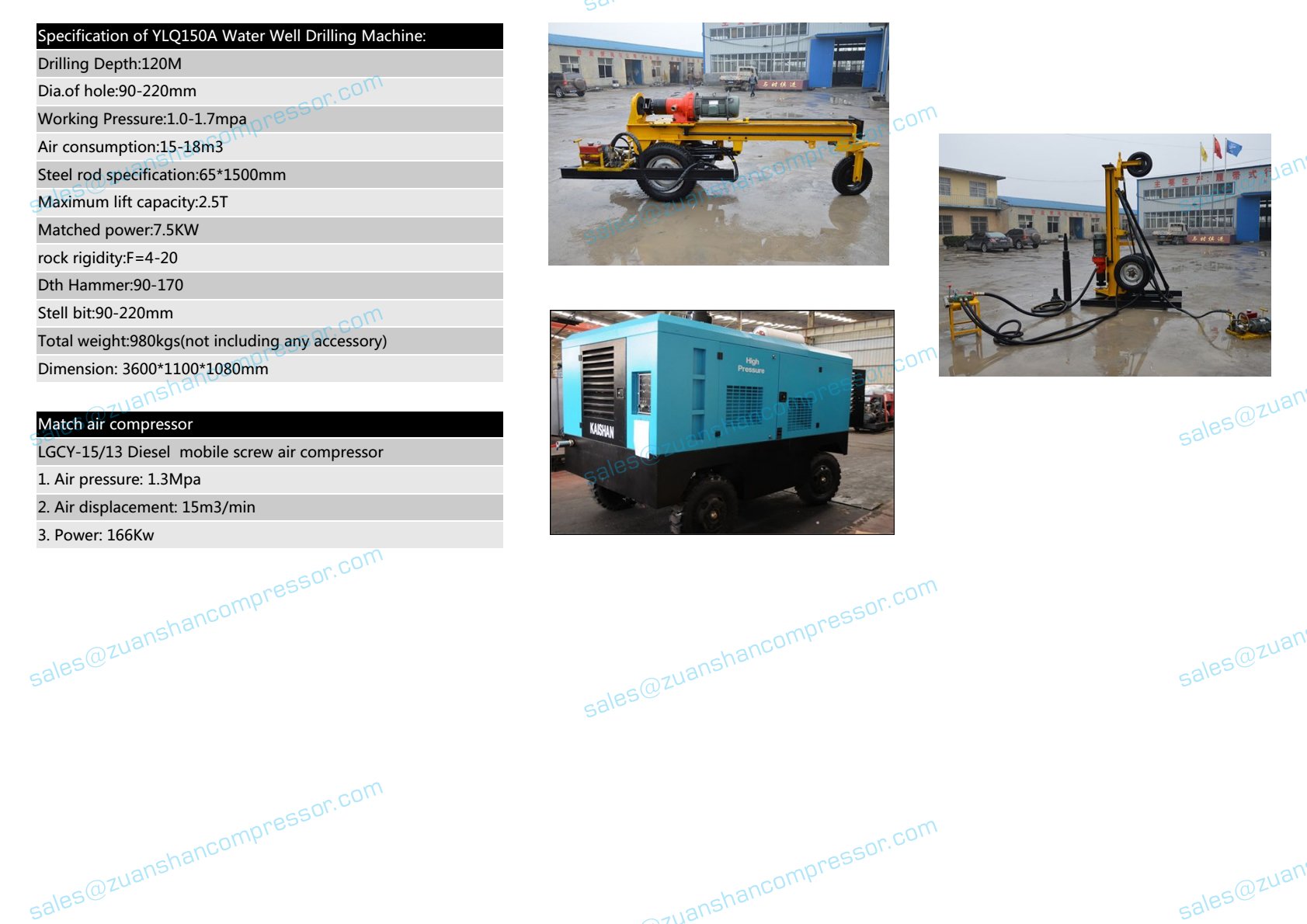

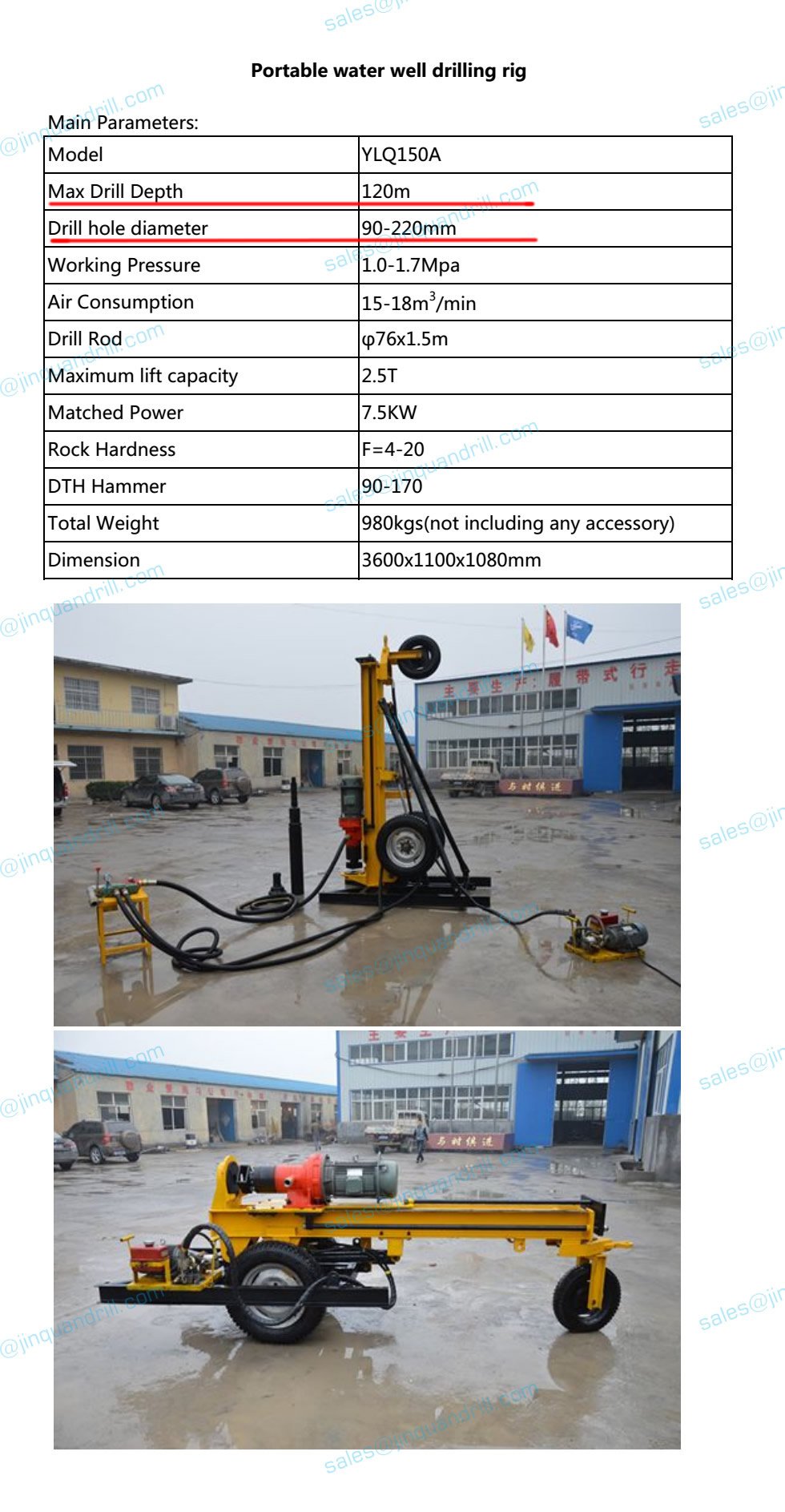

Specification of YLQ150A Small Water Well Drilling rig:

Drilling Depth:120m
Dia.of hole:90-220mm
Working Pressure:1.0-1.7mpa
Air consumption:15-18m3
Steel rod specification:65*1500mm
Maximum lift capacity:2.5T
Matched power:7.5KW
rock rigidity:F=4-20
Dth Hammer:90-170
Stell bit:90-220mm
Total weight:980kgs (not including any accessory)
Dimension: 3600*1100*1080mm

Matched screw air compressor:

LGCY-15/13 Diesel  mobile screw air compressor
1.Air pressure: 1.3Mpa
2.Air displacement: 15m3/min
3.Power: 166Kw

water well drilling rig Drilling Rig Mud Pump hydraulic drill rig Small Water Well Drilling Rig Portable Water Well Drilling Rig
