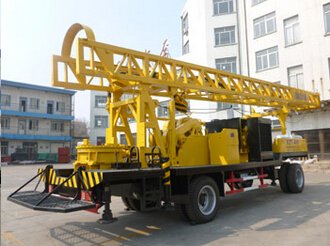

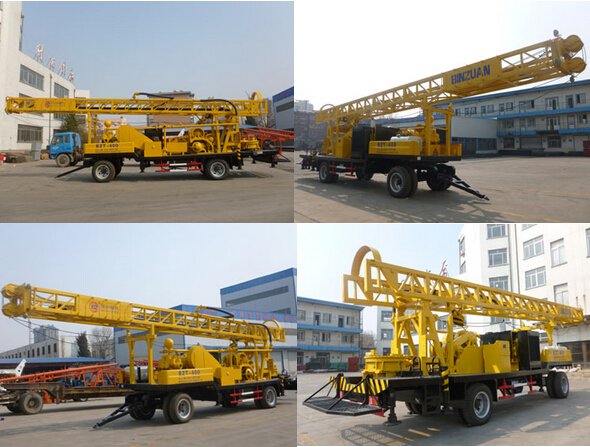

BZCT400SZ is a Trailer mounted rotary water well drilling rig, and It is widely used for water well, irrigation well, bridge pile, etc.
Model Number: BZCT400SZ
Type: Rotary Drilling Rig
Condition: New
Power Type: Diesel
Place of Origin: China (Mainland)
Voltage:/Power(W): 110-121
Dimension(L*W*H): 12500*2480*3500mm
Weight: 15800kgs
Warranty: 1 year
Usage: Water Well
Certification: ISO9001:2008
2. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
3. The power of drilling rig comes from the Diesel generator; the rig sets up distribute implement and hydraulic system. The rig has three motors, and the force were sent to the transmission system, mud pump and hydraulic system.
4. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
5. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
