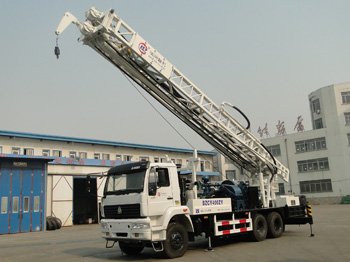

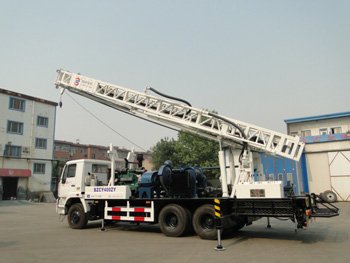

1. BZCY400ZY truck mounted drilling machine is a directly rotary drilling rig. This truck chassis is adopt the 6×4 special chassis of brand SINOTRUK, 11.00R20 steel off-road tire tread, with good off-road performance.
2. BZCY400ZY truck mounted drilling rig has very compact structure, the engine of chassis is adopted WP7.210E40 diesel engine, the power is 155kw(strong power) The drilling rig has independent diesel engine (DEUTZ-WP6G125E22), the power is 92kw. Not only meet the drilling requirements, but also reduce energy consumption, it is very affordable.
This rig is design principle is an advanced hydraulic cylinder for drilling, stepless lift, it can be achieved automaic drilling. it can automatically adjust the drilling speed for different geological conditions.
3. BZCY400ZY truck mounted drilling rig drilling process can be achieved in pressruized drilling technology, adjust different pressure for different geological conditions, and can be viewed drilling pressure by pressure gauge. At the same time, it can adjust the drilling speed.
4. BZCY400ZY truck mounted drilling rig can achieved fast drilling by manually, especially for soil. It can achieved different speed for different soil.
5. BZCY400ZY truck mounted drilling rig has a large lifting force hydraulic main hoist, stepless lift, and to achieve release rope quickly. When upgrading heavy, the lifting speed need slow to aviod crash the turntable and wellhead board. When put down single drill pipe, operate the quick handle, it can achieved release rope quickly like mechanical hoist.
6. BZCY400ZY truck mounted drilling rig has a hydraulic tool hoist, the tool hoist has large lifting force and quick lifting speed, it is both easy to loading drill tools, drill pipe and drill accessories transport, and can slide up and down with anchors, its very convenient to load and unload the drill pipe.
7. BZCY400ZY truck mounted drilling rig has a hydraulic cylinder control double card board forward and backward, it makes the insurance card board closed, to achieve stuck or release the pipe joints.
8. BZCY400ZY truck mounted drilling rig use integrated design of pneumatic, to achieve the BW850/2A mud pump clutch using pneumatic remote control, it has high degree of automation and easy-saving operation.
