600m Drilling depth D500mm Drilling diameter BZCT600 trailer mounted water well drilling rig

You are here: Home » Product List » Drilling Rigs & Rock Drills » Water Well Drilling Rigs » 600m Drilling depth D500mm Drilling diameter BZCT600 trailer mounted water well drilling rig

Product Category

Related Products

PRODUCT DETAIL

Model: BZCT600
Trademark: Zuanshan
Origin: China
Transportation: 1
Payment: T/T

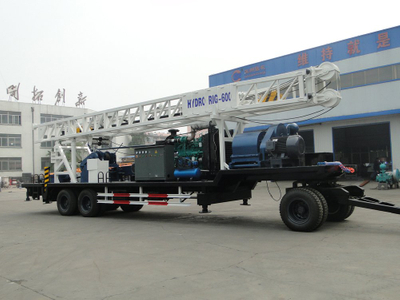

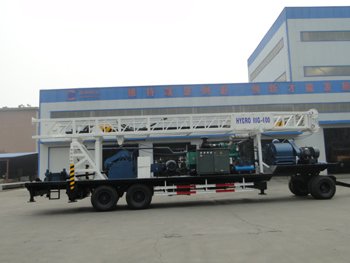

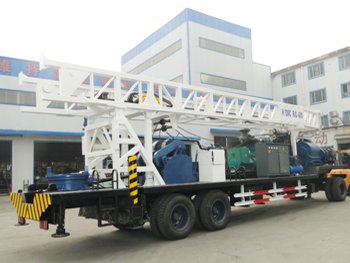

BZCT600 trailer mounted water well drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

If you want to learn more information of our water well drilling rigs, check the following links please:

300m trailer mounted drilling rig 400m deep water drill rig

Technical parameters
Drilling depth(M)	600
Drilling diameter(mm)	500
The capacity of main hoist(KN)	240
The capacity of assistant hoist(KN)	120
The height of tower(mm)	12000/15000
Bearing(KN)	300
Drill pipe(mm)	89×10
Diesel generator	Model	SGCG-200
Rated power(KW)	200
Frequency(Hz)	50
3NB-130 piston pump	Rated flow(L/s)	8.4-16.6
Work pressure(MPa)	5-10
Working size(LWH)(mm)	15100×2480×14170(17170)
Transport size(LWH)(mm)	15100(16630)×2480×4100
