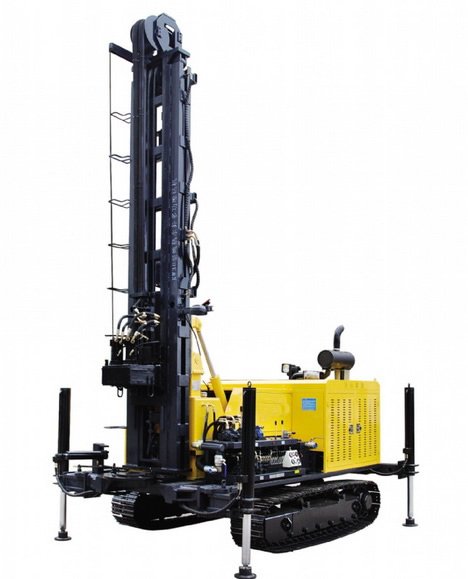

Kaishan brand crawler drill series products are special designed drilling equipment which can be widely used to drill deep holes in many areas such as quarry, railway construction, road construction, small-medium mine and so on. Used compressed air as power and equiped with hammer the crawler drill can drill blast holes, break holes, anchoring holes in different directions.
| | KW30 |
| Total weight (Kg) | 9500 |
| size(mm) | 5200×2300×3200 |
| Travel speed(Km/h) | 0～2.5 |
| Drive type | YC6B150Z-T21 |
| Drive parameter | 110Kw/2100rpm |
| Ground clearance(mm) | 280 |
| journey(mm) | 460 |
| hammer | ZS360(ZS380） |
| Climb slope ability( °) | 25 |
| Drill depth(m) | 300 |
| Work wind pressure(MPa) | 1.05-2.46 |
| Air consumption(m3/min) | 16-40 |
| Drill rod (mm) | Φ89, φ102 |
| Drill rod length(mm) | 3000/4000 |
| Drill hole diameter(mm) | φ168-300 |
| Push journey(mm) | 1750 |
| propulsion(N) | 50000 |
| Lifting Power(N) | 150000 |
| Spindle Rotary Speed(rpm) | slow | 43/52/69 |
| fast | 85/102/125 |
| Swing torque(N·m) | 8000(slow)/4000(fast) |
