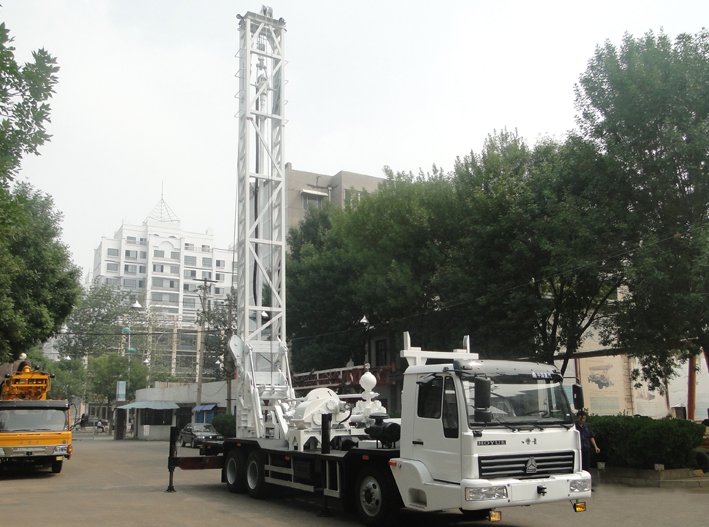

| Technical parameter of BZC350ZY drilling rig |
| Drilling depth(M) | 80 | 300 |
| Drilling diameter(mm) | 1500 | 500 |
| Speed of turntable(r/min) | 21.23663.2100.615520.2reverse |
| Torque of turntable(KN.m) | 1810.663.82.518.9reverse |
| Single rope lifting capacity of windlass (KN) | 30 |
| The max torque of whole machine (KN.m) | 40.55 |
| The lifting capacity of hook (KN) | 180 |
| Bearing capacity of mast (KN) | 180 |
| The height of mast (mm) | 11500 |
| Bearing capacity (t) | 25 |
| Pipe | Kelly mm | 108×108×7500 |
| Assistant pipe (mm) | 89×10×5500 |
| Hydraulic pump | Model | CB-HP50/32Z |
| Pump delivery (ml/r) | 50/32 |
| Rated speed (r/min) | 3500-3700 |
| Rated pressure(MPa) | 20 |
| BW850/2A plunger pump | Diameter of cylinder (mm) | 150 |
| Stroke of piston (mm) | 180 |
| Theory of flow (L / min) | 600 850 |
| Rated pressure (Mpa) | 3 2 |
| Pounding times (min-1) | 58 82 |
| Diameter of suction tube (mm) | 127 |
| Diameter of drain pipe (mm) | 64 |
| Input speed (r / min) | 470 |
| Input power (kw) | 40 |
| Overall dimensions (mm) | 2000*1030*1400 |
| Weight (t) | 1.5 |
| Truck chassis | Model | TAZ5191TXJ |
| Drive form | 6×4 |
| Engine | Model | TBD226B-6 |
| Rated power (KW) | 147 |
| Speed r/min | 2300 |
| Size L*W*H(mm) | 11110×2490×2500 |
| Electric generator | Model | MF |
| Rated power (kw) | 15 |
| Rated voltage(v) | 400 |
| Rated current(A) | 27 |
| Speed (r/min) | 1500 |
| Frequency(Hz) | 50 |
| Protection level | IP21 |
| Insulation Class | H |
| The best working gear (or speed) | 5th gear1000-1400r/min |
| The highest speed (Km/h) | 75 |
| Weight kg | 19340 |
| Transport size L*W*H(mm) | 12160*2490*3440 |
| Working size L*W*H(mm) | 11110*2490*13110 |
