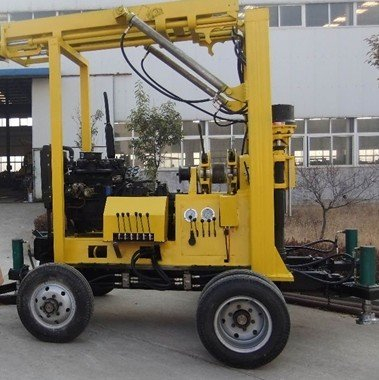

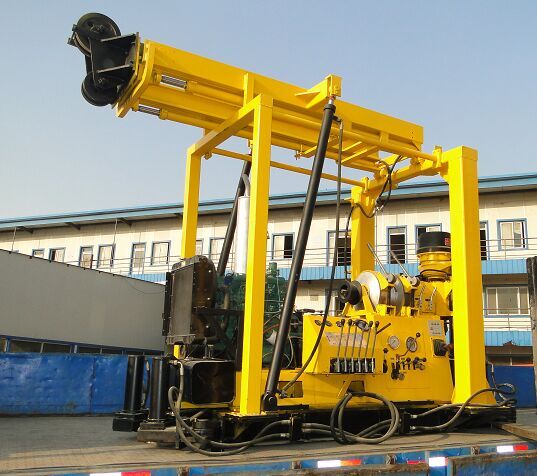

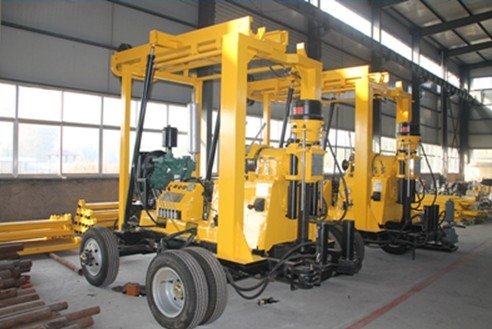

ZSYX-300T Full Hydraulic Borehole Drilling Rig (mud pump draining):
ZSXY-300T drilling rig is mainly used for geological exploration, hydropower project, road and railway construction, buliding project and big diameter water well project.
1.Drilling depth:100-600m
2.Drilling diameter:300mm
3.Hydraulic machine
4.Easy to operate.
5.Strong torque,High drilling efficiency
6.Trailer type
Machine Parameter:
| Unity machine parameter |
| Drilling depth | 100m-600m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Spindle |
| spindle speed | Forward 30-1050r/min |
| Reverse 29-137r/min |
| Spindle stroke | 560mm |
| Spindle inner diameter | 96mm |
| Lifting capacity | 60KN |
| Main winch |
| Max.Single line lifting capacity | 40KN |
| Max.Single line lifting speed | 0-45m/min |
| Wirerope caliber | 14mm |
| Wirerope length | 30m |
| Reel diameter | 300mm |
| Hug folldgate belt width | 90mm |
| Minor winch |
| Reel diameter | 140mm |
| Wirerope caliber | 6mm |
| Wirerope length | 450m |
| Mud pump |
| Type | Horizontal Triplex BW-250 mud pump |
| Displacement | 250 L/min |
| Work pressure | 7 Mpa |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Gear Oil pump |
| Duplex gear oil pump | CBF-F63/25 |
| Front Displacement, pressure | 63 L/min 20Mpa |
| Behind Displacement, pressure | 25 L/min 20Mpa |
| Power |
| Diesel engine | R4105ZD 76HP |
| Electric motor | Y180L-4 59KW |
| Wheel undercarriage |
| Chassis loading | 3T |
| Chassis length | 2.6m |
| Chassis with | 2m |
| Max high crawler | 0.6m |
