China ZST300 electric motor engineering and water well drilling rig 300m trailer type mud pump

You are here: Home » Product List » Drilling Rigs & Rock Drills » Water Well Drilling Rigs » China ZST300 electric motor engineering and water well drilling rig 300m trailer type mud pump

Product Category

Related Products

PRODUCT DETAIL

Model: ZST300
Trademark: Zuanshan
Origin: China
Transportation: 1
Payment: T/T

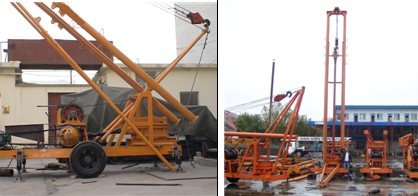

ZST300 trailer water well drilling rig:

1.Drilling depth 300m

2.Drilling dia 500mm

3.Assistant pipe(mm) 89*10*6000mm

4.Power 22k

ZST300 engineering and water well driller adopts 89mm diameter size pipes, small gantry trailer, so it is convenient for far distance construction. ZST300 engineering and water-well driller is suitable for construction of high-rise building, bridges, ports, dam foundations and deep well works.

water well driller 300m drilling rig water well drilling rig trailer drilling rig trailer water drilling rig

Technical parameters
Drilling depth (m)		300
Drilling diameter (mm)		500
Inner diameter of turntable (mm)		500
Electric engine	Power (kw)		22
	Speed (r/min)		1450
Speed of truntable (forward and reverse) (r/min)		66.7; 100
Rated output torque of truntable (KN.m)		10
Lifting capacity of windlass (single rope) (t)		3
Bearing capacity of hydrant (KN)		150
Height of mast (m)		9
Kelly (mm)		108×108×7000
Assistant pipe (mm)		89×10×6000
Working condition (mm)		6000×2400×10000
Transport condition (mm)		9550×2400×2775
Weight of whole machine (kg)		3210
