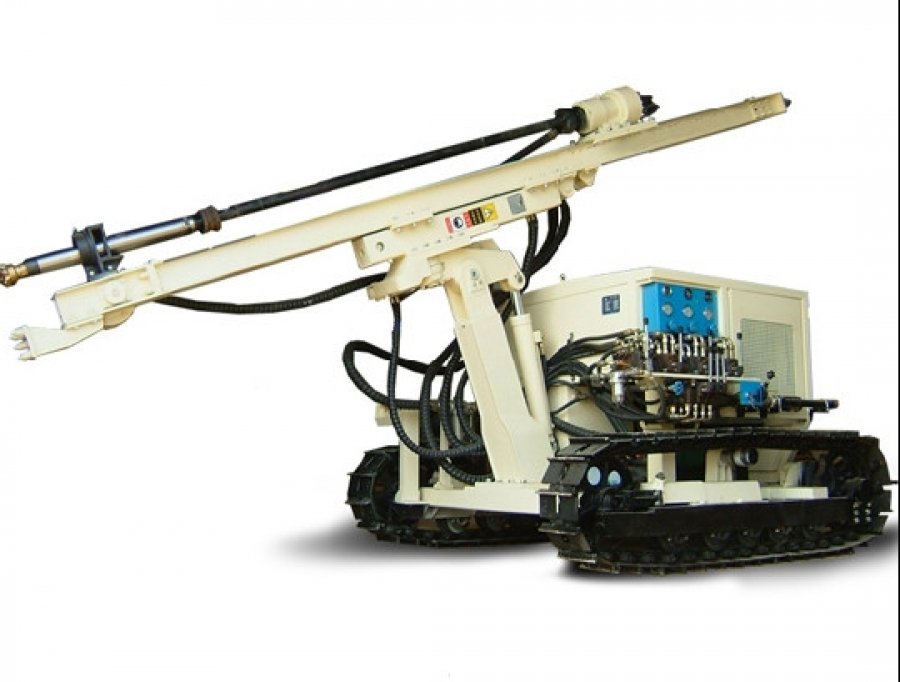

| KY100 Specification |
| Rock hardness | f=6~20 | Ground clearance(mm) | 254 |
| Hole dimater(mm) | 80~105 | Walking speed(Km/h) | 0-2.0 |
| Hole depth(m) | 20 | Drill arm lift angle | -35°~+60° |
| Work pressure(MPa) | 0.5~0.7 | Drill arm swing angle | - |
| Pressure consumption(m^3/min) | ≥10 | Carriage lift angle | -11.5°~+36.5° |
| Rotate speed(rpm) | 0~65 | carriage pitch angle | -118.5°~+23.5° |
| Lifting force (KN) | 15 | Carriage compensation(mm) | 900 |
| Drill pipe dimension(mm) | 60x2000 | Overall dimension(mm) | 4100x2030x2020 |
| Climing capacity | 30° | Weight(Kg) | 3300 |
| Remark | Gas-liquid linkage | Power | YC2108(33Kw 2200r/min) |
Auxiliary power: LGCY10/10,LGCY-12/10 Air Compressor
| Model | Capacity
(m3/min) | Working Pressure(bar) | Diesel Engine
(kw) | Dimension
(mm) |
| LGCY-10/10 | 10 | 10 | 4BTA3.9-C125,93kw | 3900×1920×1900 |
| LGCY-12/10 | 12 | 10 | YC6B150Z-K20,110kw | 4080×1980×2350 |
