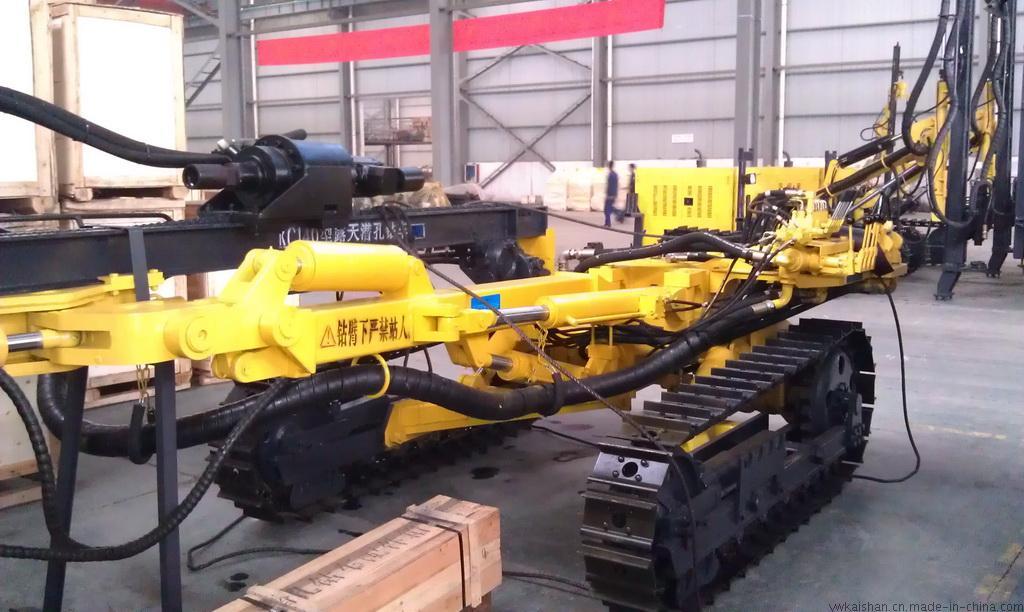

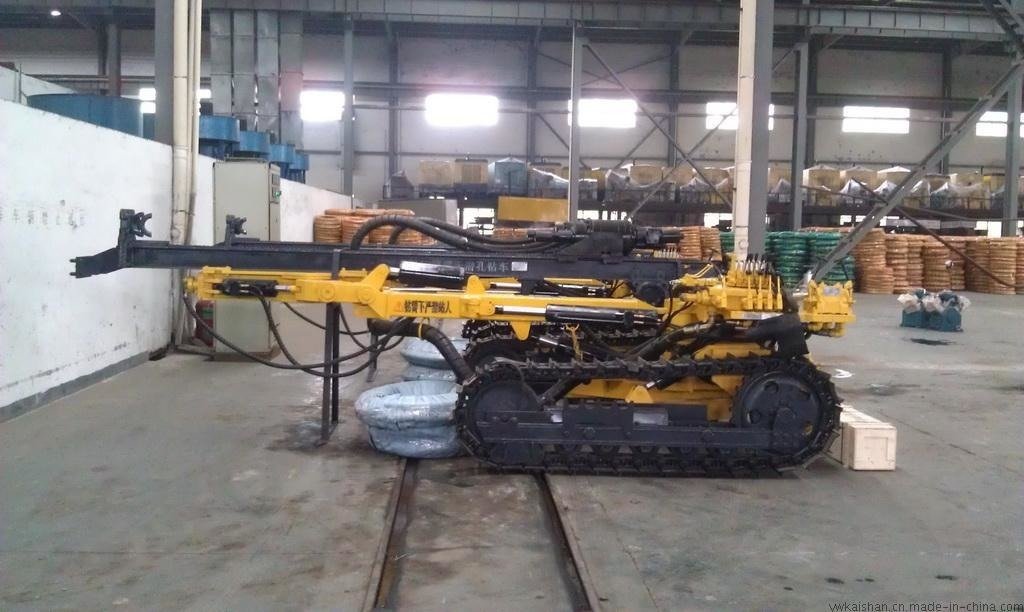

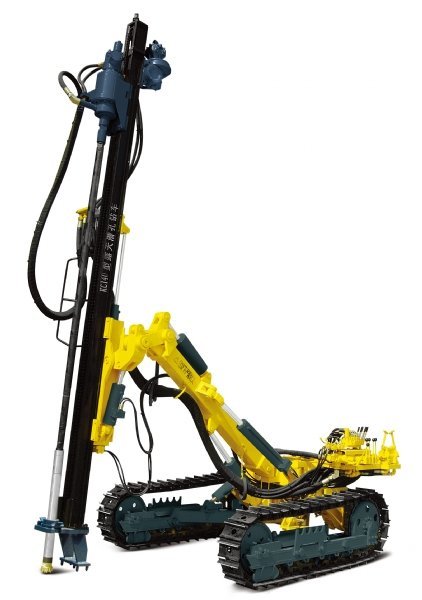

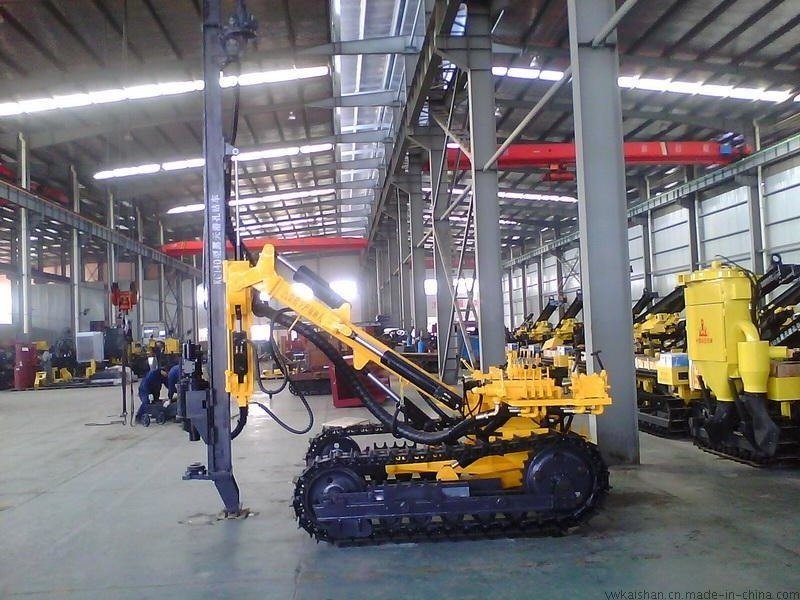

KC140 Complete Pneumatic DTH Drilling Rig:
Widely used to drill deep holes in many areas, such as quarry, railway, construction, road construction, small-medium mine and so on. Use compressed air as power and equiped with DTH hammer, the crawler surface DTH drill can drill blast hole, bore hole, break holes, anchoring holes in different rock formation directions.
Voltage:
12/24V
Power(W):
33Kw
| KC140 High Pressure DTH Drilling Rig |
| Rock Hardness | f=6~20 | Hole Diameter (mm) | 105~120 |
| Hole Depth(m) | 25 | Working Pressure (MPa) | 1.0~1.5 |
| Air Consumption(m³/min) | ≥18 | Rotating Speed (rpm) | 0~67 |
| Lifting Force (KN) | 13.6 | Rod Spec (mm) | 76x3000/89x3000 |
| Climb Ability | 30° | Distance Off Ground (mm) | 254 |
| Walking Speed (Km/h) | 2.5 | Pitching Angle of Drilling Boom | -19°~+60° |
| Oscillation angle of Drilling Boom | ±45° | Oscillation angle of Rail | -35°~+50° |
| Pitching Angle of Rail | 180° | Leveling angle of Track Link | ±7° |
