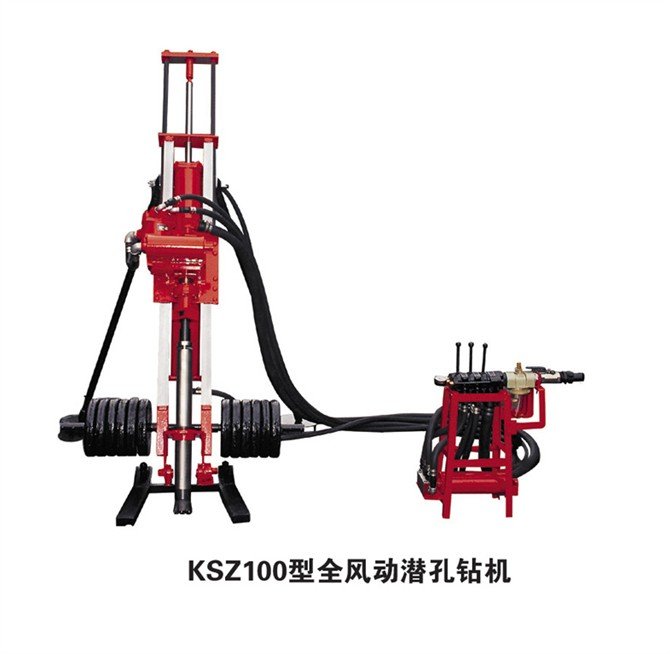

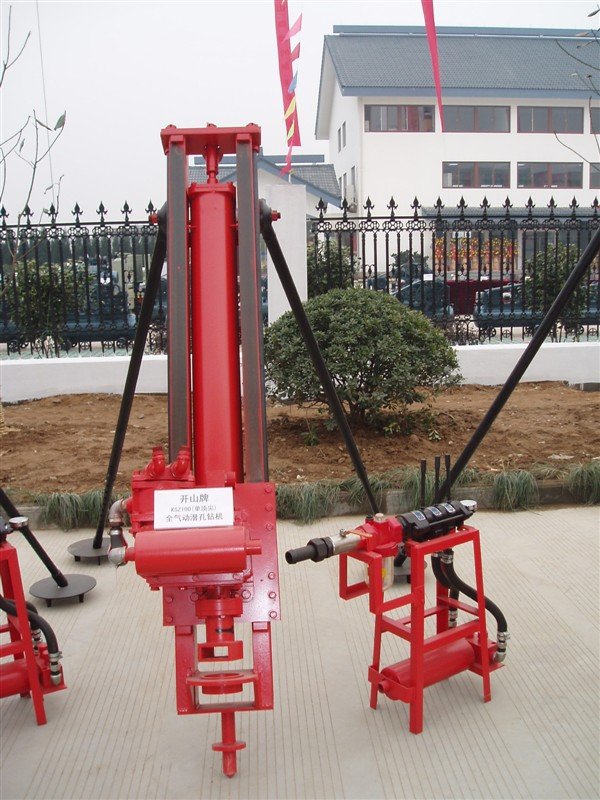

KS-Z100 high performance portable fully air driven DTH drilling rig Propelling, rotary & impacting totally use air as driving source.
It adapts different geologic formation, low noise, operating handle concentrate, easy to operate.
Dia. of hole 80-130mm
Drilling depth ≥20
Rotation speed 0-93rpm
Working Pressure 5-7bar
Air consumption ≥12m3/min
Lift power 9600N
| Model | KSQ100 | KSZ100 | KSY90 |
| Rock stratum | f=8～16 | f=8～216 | f=8～16 |
| Drilling diameter | 80～130mm | 80～130mm | 80～130mm |
| Drilling depth | 20m | 20m | 20m |
| Power | 4KW | 4KW | |
| Max. lifting ability | 9.6KN | 9.6KN | 15KN |
| Work Air pressure | 0.5～0.7Mpa | 0.5～0.7Mpa | 0.5～0.7Mpa |
| Air consumption | 7m3/min | 12m3/min | 7m3/min |
| Rotating speed(no load） | 110～160r/min | 110～160r/min | 110～160r/min |
| Weight | 260Kg | 260Kg | 450KG |
