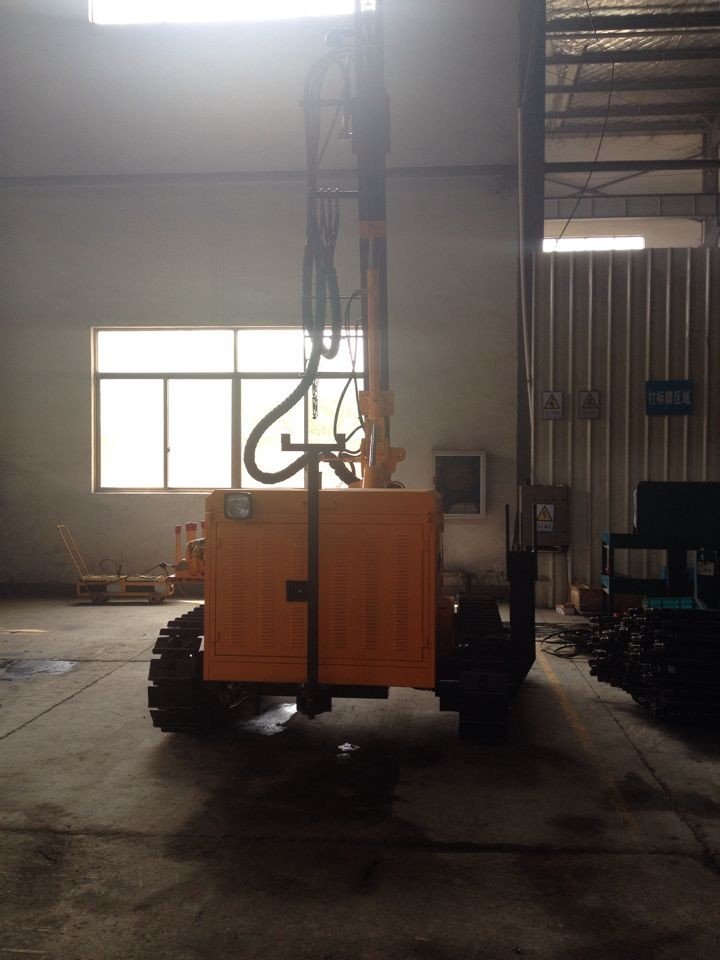

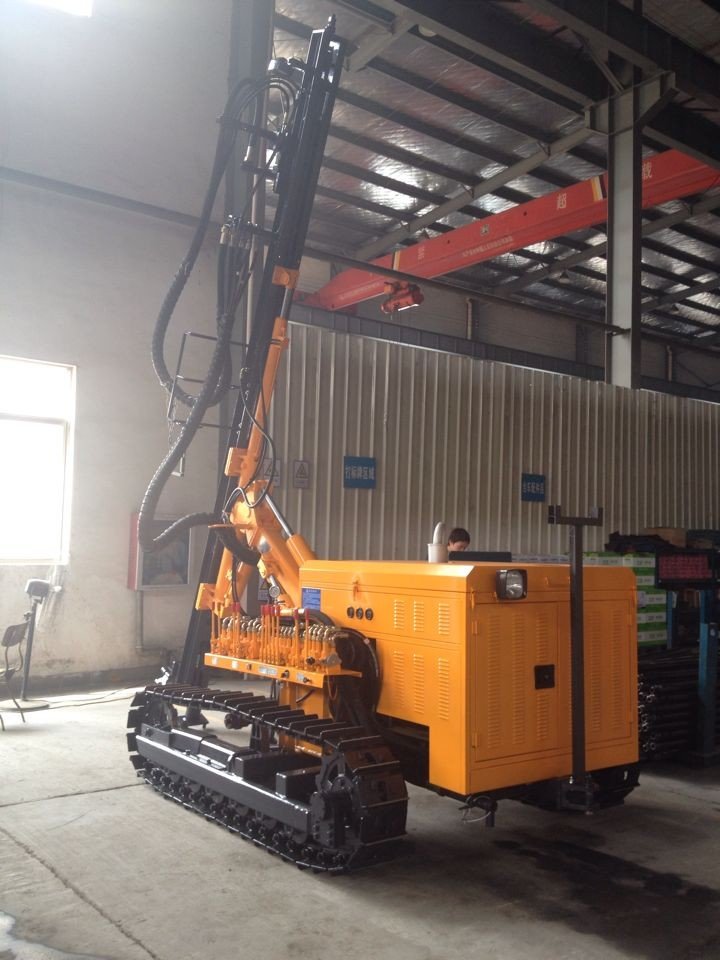

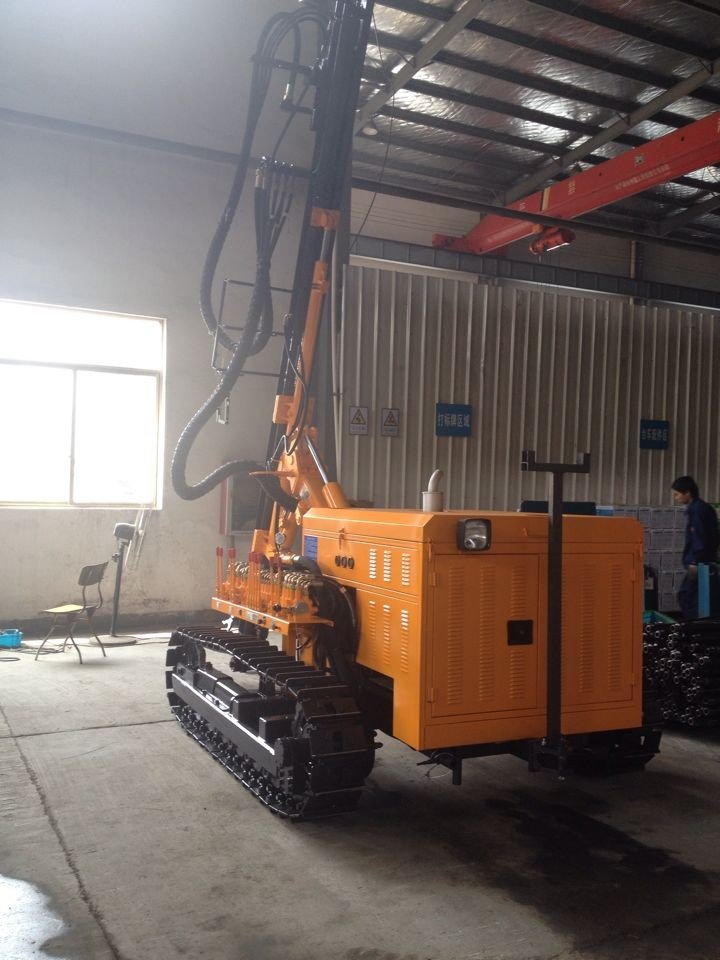

KY125 DTH Driller KG920B Portable Drilling Rig with Diesel Air Compressor

Specification

KY125

Rock hardness

F=6-20

Hole diameter (mm)

80-115

Drill depth (m)

25

Pressure (Mpa)

0.7-1.4

Air consumption (M3/min)

≥13

Rotating speed (Km/h)

0-65

Lifting capacity (KN)

17

Drill rod specification (mm)

64×3000/76×3000

Gradeability

30°

Ground clearance (mm)

290

Walking speed (km/h)

2.0

Drill arm rising angles (°)

-25~+50

Drill arm swing angle (°)

±45

Carriage swing angle(°)

-45~+100

Carriage pitch angle (°)

-50~+135

Carriage Compensation (mm)

900

Overall Dimension (L*W*H)(mm)

4000×2270×2050

Total Weight (Kg)

4000

Note:

Pneumatic-hydraulic
