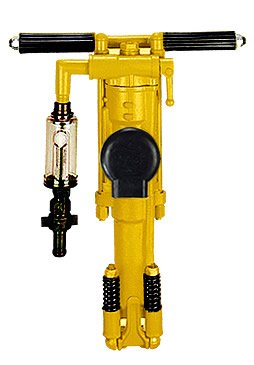

Hand Held Rock Drills Jack Hammer:
Type: Air Drill
Average Air Consumption: 25
Maximum Torque: 30
Including Hand held drills & Hydraulic drill rigs, models include Y6, Y19A, Y20, Y24, Y26, YT27, YYT28 etc.
A number of patented technology makes our products have many outstanding features: Small original driving force, fast speed, stability control, low noise, simple, reliable, easy maintenance, flexible and mobile etc.
Welcome to visit our factory in China, so that we could have a close meeting with each other, and proceed further accordingly. Best quality & rational price, expecting to establish long terms cooperations with you!
| Model | Weight
kg | length
mm | Cyinder Dia.×Stroke
mm | Working pressure
MPa | Impact energy
J | Impact frequency
Hz | Air comsumption
I/s |
| YT23 | 24 | 628 | 76×60 | 0.4-0.63 | ≥65 | ≥37 | ≤78 |
| YT23D | 24 | 668 | 70×70 | 0.4-0.63 | ≥65 | ≥31 | ≤67 |
| YT24 | 24 | 678 | 70×70 | 0.4-0.63 | ≥65 | ≥31 | ≤67 |
| ZY24 | 25 | 690 | 70×70 | 0.4-0.63 | ≥65 | ≥30 | ≤67 |
| YT28 | 26 | 661 | 60 ×60 | 0.4-0.63 | ≥70 | ≥37 | ≤81 |
| MZ7665 | 26 | 720 | 76×70 | 0.4-0.63 | ≥70 | ≥37 | ≤81 |
