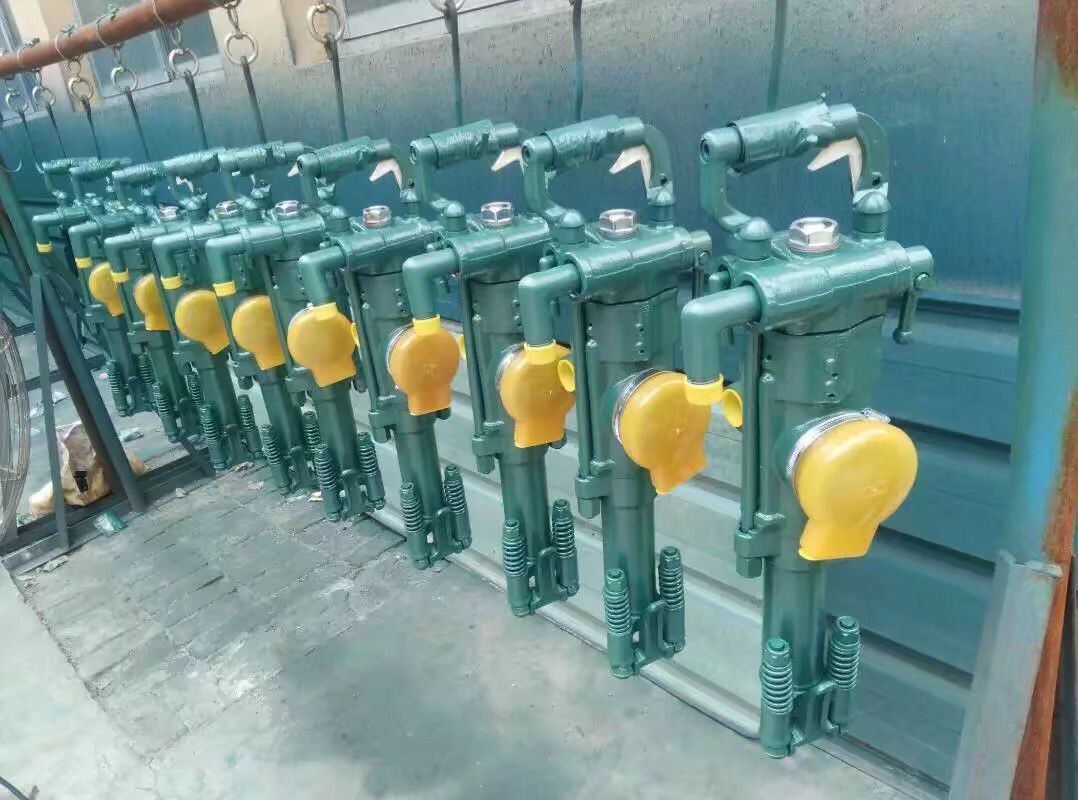

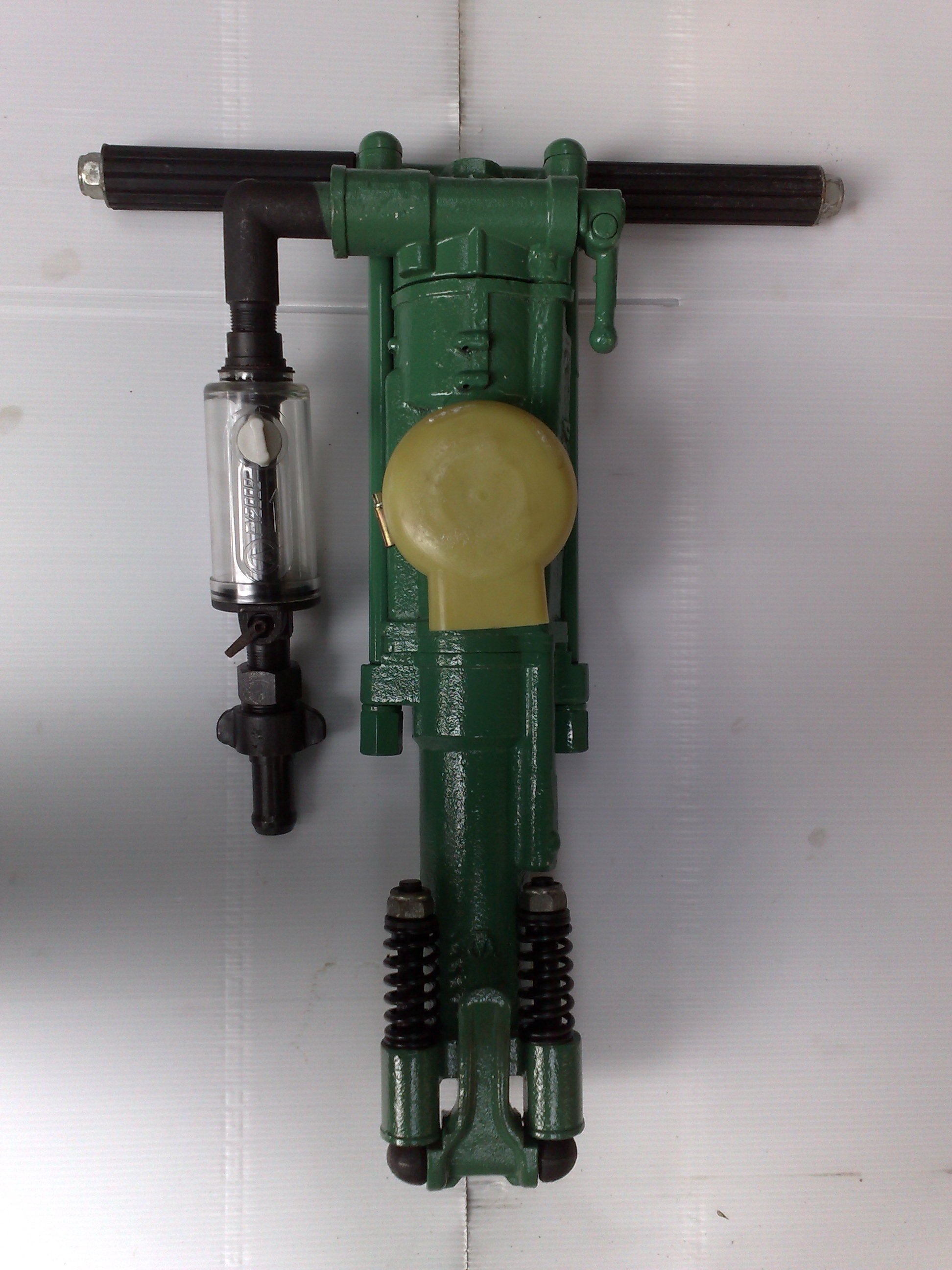

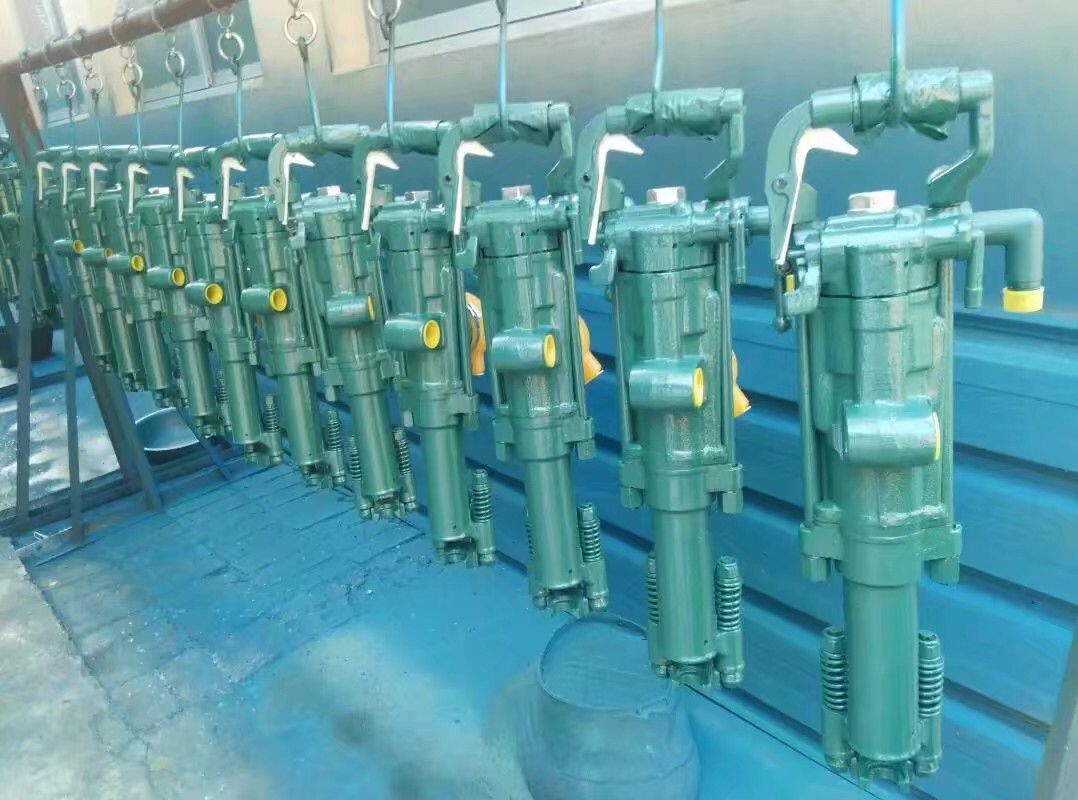

Y24 Hand-held pneumatic rock drills

You are here: Home » Product List » Drilling Rigs & Rock Drills » Hand Held Drills » Y24 Hand-held pneumatic rock drills

Product Category

Related Products

Zuanshan Rock Drill Jackhammer

PRODUCT DETAIL

Model: Y24
Brand: Zuanshan

Including Hand held drills & Hydraulic drill rigs, models include Y6, Y19A, Y20, Y24, Y26, YT27, YT28, YT29A, YYT28 etc.

A number of patented technology makes our products have many outstanding features: Small original driving force, fast speed, stability control, low noise, simple, reliable, easy maintenance, flexible and mobile etc.

Rock Drills pneumatic rock drills hand held rock drills hand rock drills hand drills

FEATURES:
Y20 & Y24 are intended for dry drilling, while YH24 for wet drilling.
·Suitable for either drilling downward or inclined blastholes in medium hard or hard rock, or for second blasting operation.
·Centrally grouped control,nimble starting,stable running and easy maintenance.
·SPECIFICATIONS：
Description	Hand-Held rock drills
Type	Y20	Y24	YH24
Weight(kg)	18	24	24
Air consumption(L/s)	25	55	55
Bore Dia. (mm)	Φ34-40	Φ34-42	Φ34-42
Drilling depth(m)	3	5	5
Shank(mm)	22×108	22×108	22×108
Air pressure(MPa)	0.4	0.4	0.4
