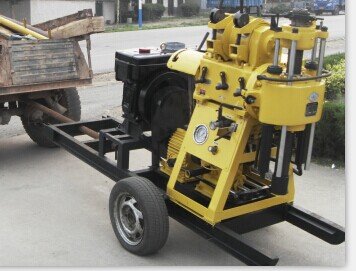

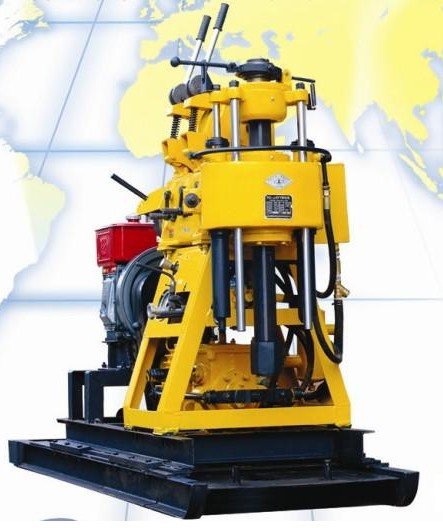

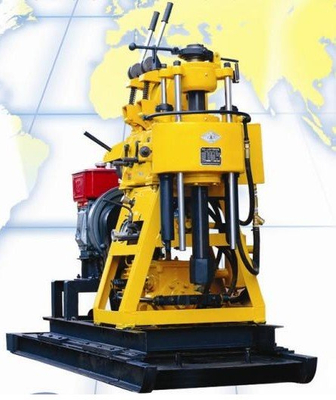

ZSYX-200T Trailer Core Drilling Rig Machine

You are here: Home » Product List » Drilling Rigs & Rock Drills » Core Drilling Rigs » ZSYX-200T Trailer Core Drilling Rig Machine

Product Category

This core drilling rig ZXYX-200T can drilling up to 200m.

Drilling diameter 75-300mm.

Diesel engine is 22Hp.

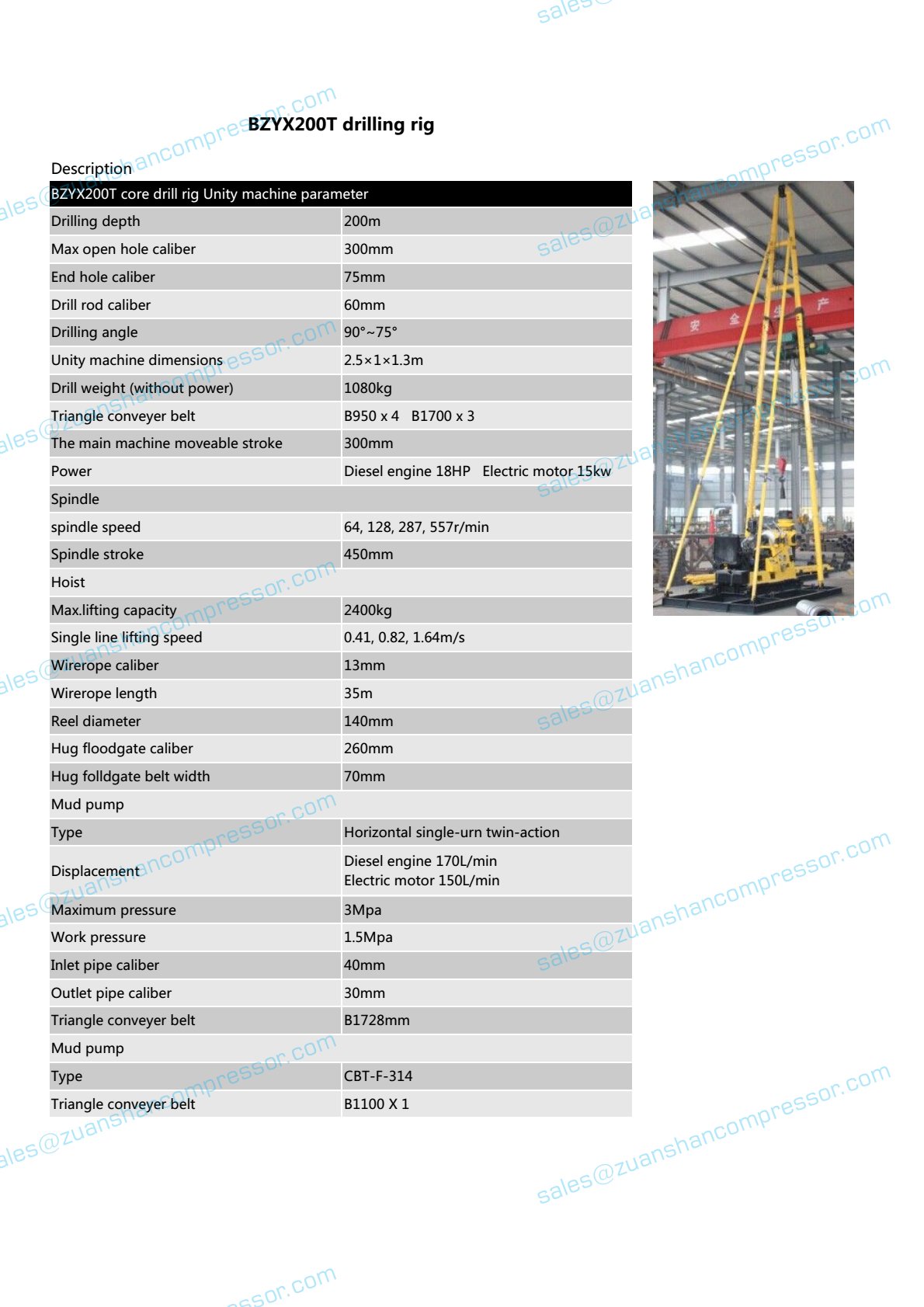

Specifications
Unity machine parameter
Drilling depth		200m
Maximum open hole caliber		75-300mm
Drill rod caliber		50mm
Drilling angle		90°～75°
Drill weight (No include power)		975kg
Unity machine dimensions		2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed		64, 128, 287, 557r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		2400kg
Single line lifting speed		17, 35, 75, 151r/min
Tightrope caliber		12.5mm
Tightrope cubic measure		35m
Hug floodgate caliber		260mm
Hug folldgate belt width		70mm
Mud pump
Type	Horizontal single urn twin-action
Displacement	170L/min
Diesle engine	S1110 Model 18HP
Electric motor	Y160M—4 11kw 1440r/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
