I. Brief Introduction

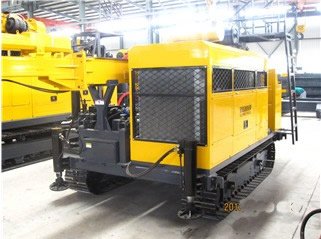

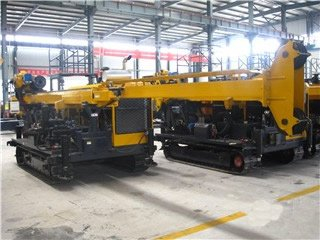

The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed countries in the world. It is also the developing direction of drilling technique and drilling equipment in China. This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries. The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulic with stepless change. The rig is simple in structure. It is light and easy for transference;the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.
II. Main Parameters
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
| Diesel Engine | Model | 6BTA5.9-C180 |
| | Power | 132Kw (177HP) |
| | Speed | 2200rpm |
| Drilling Capacity | BQ | 1000m(3280feet) |
| | NQ | 700m(2296 feet) |
| | HQ | 500m(1640 feet) |
| | PQ | 300m(984 feet) |
| Rotator Capacity | RPM | Four Shifts/ Stepless Change 0-1100 RPM |
| | Max. Torque | 3700 N·m(2727 lbf·ft) |
| | Hold Diameter | 121 mm(4.76 inch) |
| | Max. Lifting capacity of Spindle | 150 kN(33720 lbf) |
| | Max. Feeding Power | 60 kN(13480 lbf) |
| Capacity of Main Hoist | Hoisting force (single wire) | 57kN(12814 lbf) |
| | Steel Wire Diameter | 18 mm(0.71 inch) |
| | Steel Wire Length | 50 m(164 feet) |
| Capacity of Steel Wire Hoist | Hoisting Force (single wire) | 1200 Kg(2646 lb) (bare drum) |
| | Steel Wire Diameter | 6 mm(0.24 inch) |
| | Steel Wire Length | 1000 m(3280 feet) |
| Mast | Mast Height | 9.6 m(31.49 feet) |
| | Mast Adjusting Angle | 0°90° |
| | Drilling Angle | 45°90° |
| | Feeding Stroke | 3500 mm(137.80 inch) |
| | Slippage Stroke | 600 mm(23.62 inch) |
| Other | Weight (platform type) | 5700 Kg(12569 lb) |
| | Working Dimensions (L×W×H) | 5100×2200×2450mm(200×86.6×96.5 inch) (Main equipment) |
| | Transport Dimensions (L×W×H) | 2430×1540×1450 mm(95.7×60.6×57.1 inch) (Pump series) |
| Mud Pump | Model | BW150 |
| Foot Clamp | Clamping Scope | 55.5-110 mm(2.19-4.33 inch) through hole 154mm(6.06 inch) |
