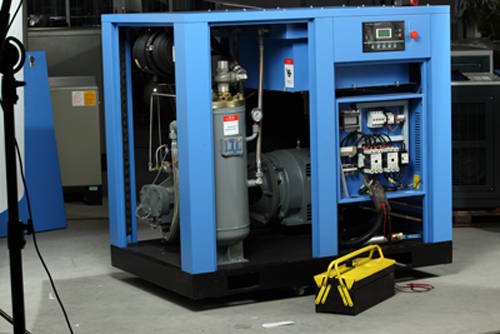

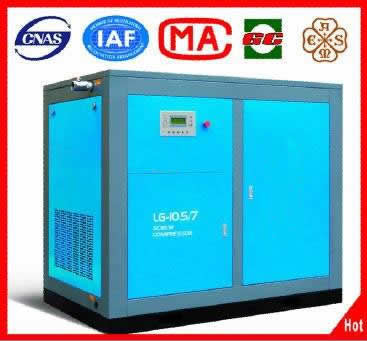

LG-10.5/7 Electric Stationary Screw Air Compressors:
LG air compressor is most economic air compressor package, but with the benefits of heavy duty working design, low maintenance cost and internal components easy exchangeable. it is flexible for air cooled and water cooled.
LG series has belt driving type (7.5 – 75kw) and direct driving model (18.5 – 355kw), working pressure from 7.5 to 13 bar(g), Free Air Delivery from 1.2 – 62 m3/min.
Made of multilayer special fiber, the oil filter, can filtrate the nepheloid oil from the compressed air, thus the high purified air could be provided.
| Model | F.A.D.
m3/min | Working Pressure
Mpa | Motor
kw | Dimension (LxWxH) mm |
| LG-1.2/8 | 1.2 | 0.8 | 7.5 | 900x700x1040 |
| LG-1.0/10 | 1.0 | 1.0 | 7.5 | 900x700x1040 |
| LG-0.8/13 | 0.8 | 1.3 | 7.5 | 900x700x1040 |
| LG-1.7/8 | 1.7 | 0.8 | 11 | 1060x800x1230 |
| GL-1.5/10 | 1.5 | 1.0 | 11 | 1060x800x1230 |
| LG-1.2/13 | 1.2 | 1.3 | 11 | 1060x800x1230 |
| LG-2.4/8 | 2.4 | 0.8 | 15 | 1060x800x1230 |
| LG-2.2/10 | 2.2 | 1.0 | 15 | 1060x800x1230 |
| LG1.7/13 | 1.7 | 1.3 | 15 | 1060x800x1230 |
| LG-3/8 | 3.0 | 0.8 | 18.5 | 1080x880x1415 |
| LG-2.7/10 | 2.7 | 1.0 | 18.5 | 1080x880x1415 |
| LG-2.3/13 | 2.3 | 1.3 | 18.5 | 1080x880x1415 |
| LG-3.6/8 | 3.6 | 0.8 | 22 | 1080x880x1415 |
| LG-3.2/10 | 3.2 | 1.0 | 22 | 1080x880x1415 |
| LG-2.7/13 | 2.7 | 1.3 | 22 | 1080x880x1415 |
| LG-5/8 | 5.0 | 0.8 | 30 | 1300x1100x1650 |
| LG-4.5/10 | 4.5 | 1.0 | 30 | 1300x1100x1650 |
| LG-3.7/13 | 3.7 | 1.3 | 30 | 1300x1100x1650 |
| LG-6.2/8 | 6.2 | 0.8 | 37 | 1630x910x1220 |
| LG-5.6/10 | 5.6 | 1.0 | 37 | 1300x1100x1650 |
| LG-4.8/13 | 4.8 | 1.3 | 37 | 1300x1100x1650 |
| LG-7.1/8 | 7.1 | 0.8 | 45 | 1300x1100x1650 |
| LG-6.5/10 | 6.5 | 1.0 | 45 | 1300x1100x1650 |
| LG-5.6/13 | 5.6 | 1.3 | 45 | 1300x1100x1650 |
| LG-10/8G | 10.0 | 0.8 | 55 | 1950x1160x1550 |
| LG-8.7/10 | 8.7 | 1.0 | 55 | 1620x1230x1670 |
| LG-7.5/13 | 7.5 | 1.3 | 55 | 1620x1230x1670 |
| LG-13/8G | 13.0 | 0.8 | 75 | 2440x1160x1620 |
| LG-12/10G | 12.0 | 1.0 | 75 | 2440x1160x1620 |
| LG-10/13 | 10.0 | 1.3 | 75 | 1580x1320x1646 |
| LG-16/8G | 16.0 | 0.8 | 90 | 2560x1300x1620 |
| LG-14/10G | 14.0 | 1.0 | 90 | 2560x1300x1620 |
| LG-12/13G | 12.0 | 1.3 | 90 | 2560x1300x1620 |
| LG-20/8G | 20.0 | 0.8 | 110 | 2760x1340x1710 |
| LG-16/10G | 16.0 | 1.0 | 110 | 2760x1340x1710 |
| LG-13/13G | 13.0 | 1.3 | 110 | 2760x1340x1710 |
| LG-22/8G | 22.0 | 0.8 | 132 | 2760x1340x1710 |
| LG-20/10G | 20.0 | 1.0 | 132 | 2760x1340x1710 |
| LG-16/13G | 16.0 | 1.3 | 132 | 2760x1340x1710 |
| LG-27/8G | 27.0 | 0.8 | 160 | 2860x1510x1810 |
| LG-23/10G | 23.0 | 1.0 | 160 | 2860x1510x1810 |
| LG-20/13G | 20.0 | 1.3 | 160 | 2860x1510x1810 |
| LG-30/8G | 30.0 | 0.8 | 185 | 3400x2100x2100 |
| LG-21/13G | 21.0 | 1.3 | 185 | 2860x1510x1810 |
| LG-35/8G | 35.0 | 0.8 | 200 | 3400x2100x2100 |
| LG-30/10G | 30.0 | 1.0 | 200 | 3400x2100x2100 |
| LG-27/13G | 27.0 | 1.3 | 200 | 3400x2100x2100 |
| LG-44/8G | 44.0 | 0.8 | 250 | 3700x2200x2200 |
| LG-38/10G | 38.0 | 1.0 | 250 | 3900x2200x2200 |
| LG-33/13G | 33.0 | 1.3 | 250 | 3700x2200x2200 |
