Diesel engine: choosed "Dongfeng Cummins" and "Yuchai" brand diesel engine which are domestic famous brand, have passed European level 2 emissions and ISO9001 standards , low oil consumption, superior after-sale service system covering the whole country, customers can be serviced rapidly and perfectly.
We are one the leading manufacturers and suppliers of portable screw air compressor. The Zuanshan mobile screw compressors, as an ideal choice for all kind of construction, mining, grounding, marine industry and many other applications. These portable screw air compressor models are equipped with an exclusive screw airend, constructed with the strongest materials and each compressor ensure exceptional performance, efficiency and long lasting maintenance life.
Vibration isolation mount technology ensures smooth and quiet operation.
Multi-auto alarm associate with high temperature shut down protection system.
Easy to maintain with of the shelf parts.
Easy to operate with detail instruction.
Top grade diesel engines are used to ensure minimal emission to environment.

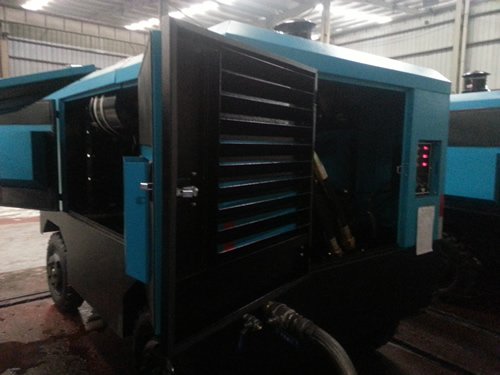

LG portable high-pressure screw air compressor is driving by Cummins diesel engine, which is apply for Mining, quarrying, tunnelling and Construction drilling machine and power air tools, Heavy duty 24 hours and trouble free operation. Welcome to visit our factory in China, and have a close meeting & long terms cooperations.
| LGCY Portable Screw Compressor Specification |
| Model | Capacity
m3/min | Working Pressure
Mpa | Diesel Engine
kw | Weight
kg | Dimension
mm |
| LGCY-6/7 | 6.0 | 0.7 | YCD4B22-95, 70kw | 1400 | 3550x1800x1800 |
| LGCY-7.5/7 | 7.5 | 0.7 | YC4D80-K11, 58kw | 1850 | 3750x1920x1900 |
| LGCY-9/7 | 9.0 | 0.7 | YC4D95Z-K20, 70kw | 1850 | 3750x1920x1900 |
| LGCY-10/7 | 10.0 | 0.7 | YC4D95Z-K20, 70kw | 1900 | 3750x1920x1900 |
| LGCY-10/10 | 10.0 | 1.0 | 4BTA3.9-C125, 93kw | 1900 | 3750x1920x1900 |
| LGCY-8.5/14 | 8.5 | 1.4 | 4BTA3.9-C125, 93kw | 1900 | 3750x1920x1900 |
| LGCY-12/7 | 12.0 | 0.7 | 4BTA3.9-C125, 93kw | 2050 | 3970x1940x1900 |
| LGCY-12/7A | 12.0 | 0.7 | YC4A125Z-T10, 92kw | 2050 | 3970x1940x1900 |
| LGCY-9/14.5 | 9.0 | 1.45 | YC6B150Z-K20, 110kw | 2380 | 3970x1940x2350 |
| LGCY-12/10 | 12.0 | 1.0 | YC6B150Z-K20, 110kw | 2380 | 3970x1940x2350 |
| LGCY-12/12 | 12.0 | 1.2 | EQ6BT5.9-C160, 118kw | 2380 | 3970x1940x2350 |
| LGCY-13/13 | 13.0 | 1.3 | 6BTA5.9-C180, 132kw | 2750 | 3350x1520x2350 |
| LGCY-13/13A | 13.0 | 1.3 | YC6A190Z-T10, 140kw | 2750 | 3350x1520x2350 |
| LGCY-15/13 | 15.0 | 1.3 | WD415.23, 166kw | 3350 | 3350x1650x2500 |
| LGCY-15/13A | 15.0 | 1.3 | YC6A240-20, 177kw | 3350 | 3350x1650x2500 |
| LGCY-17/7 | 17.0 | 0.7 | 6BTA5.9-C180, 132kw | 3050 | 3350x1650x2500 |
| LGCY-13/17 | 13.0 | 1.7 | 6CTA8.3-C215, 158kw | 2380 | 3650x1800x2500 |
| LGCY-16/13 | 16.0 | 1.3 | 6CTA8.3-C215, 158kw | 3700 | 3650x1800x2500 |
| LGCY-17/14.5 | 17.0 | 1.45 | 6CTA8.3-C260, 194kw | 3700 | 3650x1800x2500 |
| LGCY-16/17 | 16.0 | 1.7 | 6CTA8.3-C260, 194kw | 3700 | 3650x1800x2500 |
| LGCY-18/17 | 18.0 | 1.7 | 6CTA8.3-C260, 194kw | 3700 | 3650x1800x2500 |
| LGCY-22/8 | 22.0 | 0.8 | 6CTA8.3-C260, 194kw | 4000 | 4250x1950x2500 |
| LGCY-22/13 | 22.0 | 1.3 | YC6M340L-K20, 250kw | 4500 | 4250x1950x2500 |
| LGCY-22/13K | 22.0 | 1.3 | 6LTAA8.9-C325, 239kw | 4500 | 4250x1950x2500 |
| LGCY-22/13S | 22.0 | 1.3 | WD615.46, 266kw | 4500 | 4250x1950x2500 |
| LGCY-21/20 | 21.0 | 2.0 | 6LTAA8.9-C325, 239kw | 4500 | 4450x1950x2650 |
| LGCY-22/20 | 22.0 | 2.0 | YC6M395L-K20, 288kw | 4850 | 4450x1950x2650 |
| LGCY-22/20K | 22.0 | 2.0 | 6LTAA8.9-C360, 265kw | 4500 | 4450x1950x2650 |
| LGCY-22/20 | 22.0 | 2.0 | NTA855-P400, 298kw | 4850 | 4450x1950x2650 |
| LGCY-26/20 | 26.0 | 2.0 | NTA855-P400, 298kw | 4850 | 4450x1950x2650 |
