Underground core drilling rig is a completely self-sufficient, fully equipped, rig. Its one-piece design makes it quick and easy to set up and move around. The control panel is placed on the carrier under the roof to ensure safe drilling operations.
Type: Single Boom Full Hydraulic Underground Crawler Drilling Jumbo
Brand: Zuanshan
Model: UBS17HDS
Quality: Promise good
Condition: Brand new, 100% new

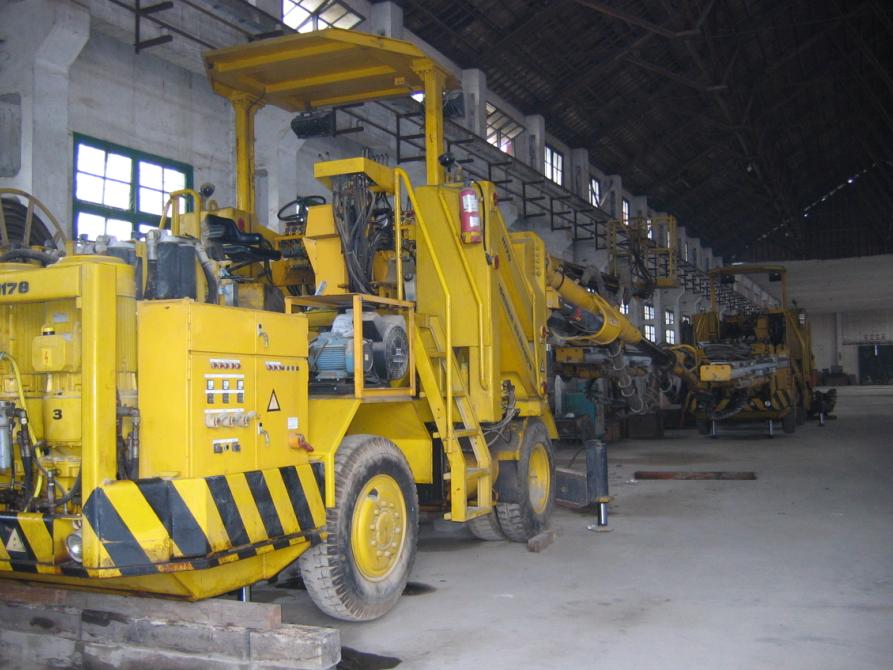

Welcome to our yard to check the machines yourself.
We will provide you our best service to make you feel at home.
Main Features:
UBS17HDS Hydraulic single boom drilling Jumbo is mainly used to drill blast holes for tunneling constructions in coal mine, metal mine, non-ferrous metal mine, hydro-power station, railroad, highway engineering etc. The jumbo is designed suitable for tunneling in small section of 4.2-10.2m2, this small compact jumbo can improve working environment and get efficiency, quality development.
Zuanshan provides exploring equipment, mining equipment, anchoring equipment and non-excavation equipment, including 11 different kinds of drilling rigs and drilling jumbos, 2 different kinds of pumps.
The underground drilling rig we can supply:
5 kinds of Underground DTH Drilling Rig: UDS80TMP, UDS80MP, UDS100HP, UDS100D, UDS101D.
6 kinds of Underground Hydraulic Drilling Jumbo: UBS17HDC, UBS17HDS, UBS17HDTC, UBS81HD, UBS03HDU, UBS100UD.
These 11 kinds of drilling machines are: Core drilling rig, rock drill, surface mining machine, underground mining machine, reverse circulation drilling rig, multipurpose drilling rig, water well drilling rig, geothermal drilling rig, engineering drilling rig, anchoring drilling rig and non-excavation drilling rig. These 2 kinds of pumps are: Mud pump and high pressure grout pump.
| item | unit | specification |
| outside dimension(LxWxH) | mm | 6550×960×1650 |
| hole depth (feed at once) | mm | 1600/2100 |
| hole size | mm | Φ33 - Φ42 |
| cross section suitable (WxH) | m | 3.5×3.5 - 2.0×2.0 |
| feeder compensation | KW | 37 |
| Voltage | V | 380 /660 |
| Traveling speed | KM/H | 0 - 2.4 |
| boom raising/down | ° | 55/16 |
| boom swing | ° | inside 26; outside 26 |
| boom rotation | ° | ±180 |
| drifter | unit | HYD200 |
| climb capability | ° | ≤16 |
| min. turning radius | mm | 3000 |
| total weight | T | 5.3 approx |
