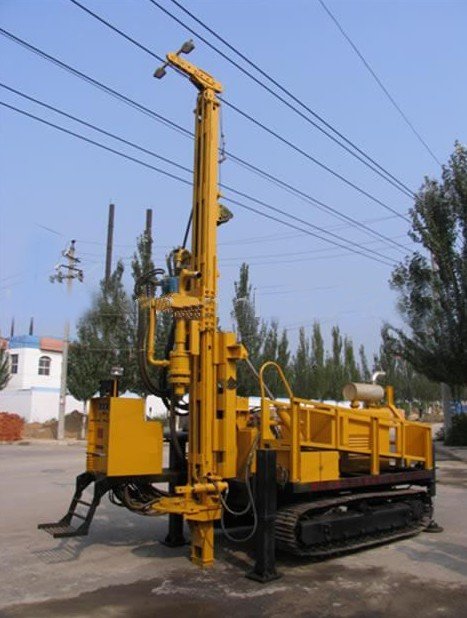

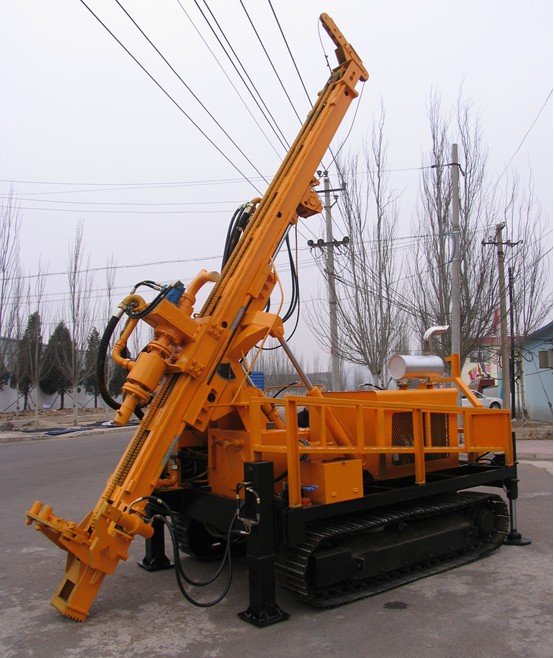

ZS500RC reverse circulation rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution . You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis. It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
The rig can be used in a variety of formation on the compressed air reverse circulation drilling DTH. The drilling rig lifting frame, drill two compensation, drill pipe Shanghai Automotive Industry Corp, rotary and feed, outrigger, winch, walking and other movements by the hydraulic system implementation, significantly reducing the labor intensity, improve the efficiency of the construction and engineering quality.
| Maximum drill depth | m | 280 |
| Drill diameter | mm | 110-305 |
| Work air pressure | Mpa | 1.05-3 |
| Total gas consumption | m3/min | 16-42 |
| Footage efficiency | m/h | 10-25 |
| Pipe length | m | 3 |
| Pipe diameter | mm | Φ89/Φ108/Φ127 |
| Axial pressure | t | 5 |
| Lifting Power | t | 12 |
| Slow up speed | m/min | 2.9 |
| Slow forward speed | m/min | 4.2 |
| Quick up speed | m/min | 14.5 |
| Quick forward speed | m/min | 21 |
| Slewing torque | N*m | 4000-5700,2820-3300 |
| Rotary speed | r.p.m | 0-120 ,0-150 |
| Walking speed | km/h | 2.5 |
| Gradeability | ° | 21 |
| Host weight | t | 7 |
| Host Overall dimensions | mm | 6300x2100x2800 |
