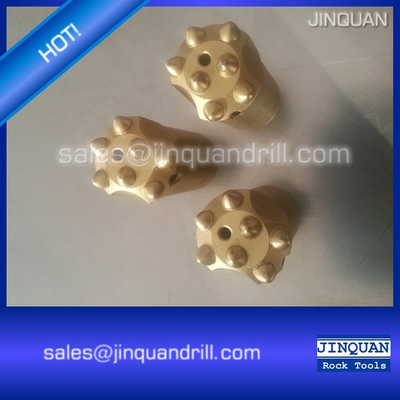

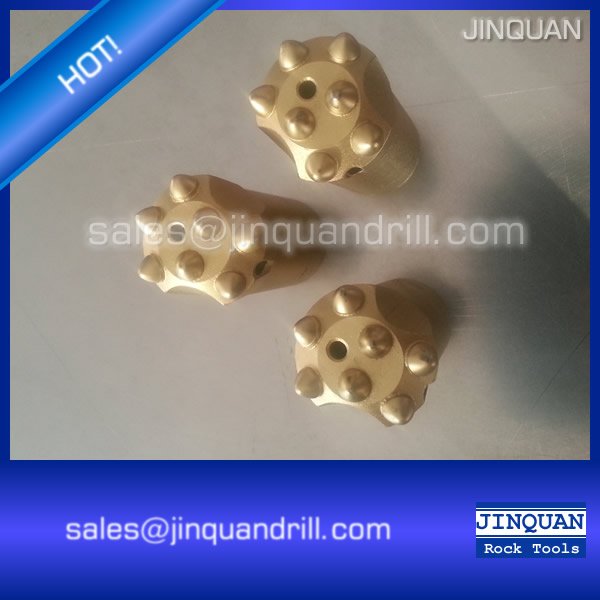

Tapered Button Bits:

We offer high quality of tapered button bits & tapered drilling equipments, these tapered drilling button bits are made with high quality of raw material through special heat treatment, various type suitable for afferent work site. The diameter of tapered bits is from 28mm to 43mm with 4 6 7 11 12 taper degree. The deliver capacity are very strong and can completely meet customers' requirements on th design.

Specifications:
(1) Connect Size:  Φ22, Φ25 and etc.
(2) Diameter: D28-43mm.
(3) Tapered connection: 4 degree, 6 degree, 7 degree, 11 degree, 12 degree etc.
(4) Package: Wood case or Plastic box.
(5) Productivity: 60000pcs/ month.

Packing: Wooden cases or plastic boxes.

Specification of tapered button bits:

Part Number Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
4148300271 41 1 3/5 2x7 5x9 35° 1 1 0.41
4148300272 32 1 1/4 2x7 5x7 35° 1 1 0.3
4148300273 33 1 2/7 2x7 5x7 35° 1 1 0.31
4148300274 33 1 2/7 2x7 6x7 40° 2 1 0.31
4148300275 35 1 3/8 2x7 6x7 40° 2 1 0.35
4148300276 38 1 1/2 2x7 5x9 35° 1 1 0.41
4148300277 41 1 3/5 2x7 5x9 35° 1 1 0.42
4148300278 35 1 3/8 2x7 5x9 35° 1 1 0.38
4148300279 36 1 3/7 2x7 5x9 35° 1 1 0.39
4148300280 38 1 1/2 2x7 5x9 35° 1 1 0.41
4148300281 41 1 3/5 2x7 5x9 35° 1 1 0.42
