Portable Diesel Driven Air Piston Compressor (W-3.2/7) Mining, Drilling

You are here: Home » Product List » Air Compressors » Piston Air Compressor » Portable Diesel Driven Air Piston Compressor (W-3.2/7) Mining, Drilling

Product Category

Related Products

PRODUCT DETAIL

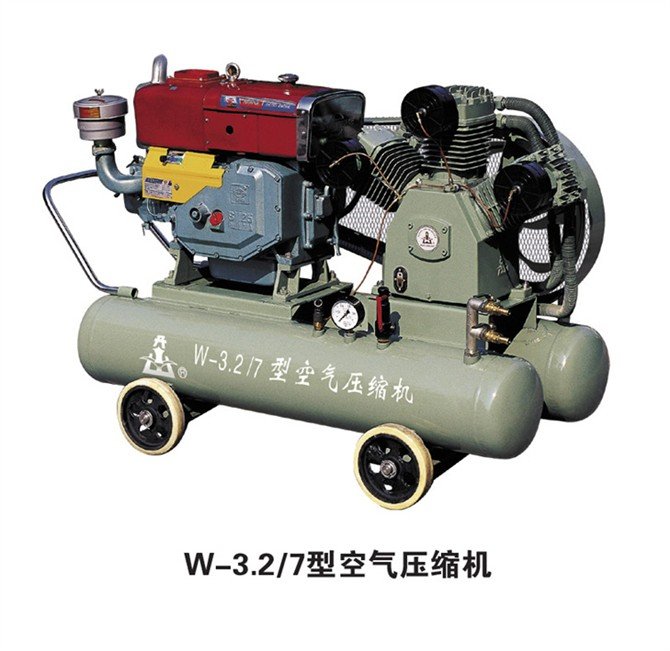

Model: W-3.2/7
Brand: Kaishan

W-3.2/7 Mining Piston Air Compressor:

Our factory supply many kinds of air compressor! Diesel, Motor, Piston, Screw type etc.

1 Cylinder diameter(mm)/Cylinder No.: 125/3
2 Stroke (mm): 100
3 Rated pressure(Mpa): 0.7
4 Rated speed (r/min): 960
5 capacity ( m3/min): 3.2
6 Volume of tank (L): 230
7 Displacing valve: Sweden imported thick stainless steel
8 Cylinder structure: Integral suppressed aluminum alloy
9 Lubrication method: Oil needle splash
10 Cooling method: Air cooled
11 Diesel motor: S1125, 20KW 25HP
12 Dimension(L W H) (mm) 196/90/125
13 N. W (kg): 550
14: G. W (kg): 650
15 Carton size (mm): 200/95/130

Piston air compressor specification
Model	Diesel /Motor Engine(kW)	Capacity(m3/min)	Working pressure (Mpa)	Demension(L×W×H)
W-1.35/5-D	11	1.35	0.5	1390×640×980
W-1.35/5	S1100	1.35	0.5	1390×640×980
W-1.8/5-J-D	11	1.8	0.5	1700×710×1000
W-1.8/5-J	S1100	1.8	0.5	1700×710×1000
W-1.8/5-D	11	1.8	0.5	1700×710×1000
W-1.8/5	S1100	1.8	0.5	1700×710×1000
W-2/5-D	11	2	0.5	1700×810×1050
W-2/5	S1100	2	0.5	1700×810×1050
W-2.6/5-D	15	2.6	0.5	1780×870×1235
W-2.6/5	S1110	2.6	0.5	1780×870×1235
W-2.8/5-D	15	2.8	0.5	1780×870×1235
W-2.8/5	S1110	2.8	0.5	1780×870×1235
W-2.8/5-G-D	15	2.8	0.5	1780×870×1235
W-2.8/5-G	S1115	2.8	0.5	1780×870×1235
W-2.8/5-G-DZ	15	2.8	0.5	1780×870×1235
W-3/5-D	18.5	3	0.5	1800×900×1300
W-3/5	S1115	3	0.5	1800×900×1300
2V-3.5/5-D	18.5	3.5	0.5	1800×950×1300
2V-3.5/5	S1125	3.5	0.5	1800×950×1300
2V-4/5-D	18.5	4	0.5	1800×950×1300
2V-4/5	S1125	4	0.5	1800×950×1300
W-1.8/7-D	11	1.8	0.7	1100×820×1100
W-1.8/7	S1100	1.8	0.7	1100×820×1100
W-2.6/7-D	15	2.6	0.7	1800×870×1235
W-2.6/7	S1115	2.6	0.7	1800×870×1235
W-3.2/7-D	18.5	3.2	0.7	1920×960×1350
W-3.2/7	S1125	0.7	0.7	1920×960×1350
W-2.5/3-D	11	2.5	0.3	1780×870×1235
W-2.5/3	S1110	2.5	0.3	1780×870×1235
VF-3/7	18.5	3	0.7	1720×1100×1110
VF-6/7	37	6	0.7	2100×1100×1110
VFY-6/7	37	6	0.7	2830×1500×1890
VF-7/7	40	7	0.7	2100×1100×1110
CVF7/7	YC4108	7	0.7	2760×1200×1460
CVF7/7	QC4110	7	0.7	2760×1200×1460
VFY-7/7	40	7	0.7	2830×1500×1890
CVFY-7/7	YC4108	7	0.7	2830×1300×1890
CVFY-7/7	QC4110	7	0.7	2830×1300×1890
VF-9/7	55	9	0.7	2460×1200×1220
VFY-9/7	55	9	0.7	2830×1500×1900
VF-10/7	63	10	0.7	2460×1200×1220
VFY-10/7	63	10	0.7	2830×1500×1900
CVF-10/7	YC4108ZG	10	0.7	3200×1350×1650
CVF-10/7	QC4112	10	0.7	3200×1350×1650
CVFY-10/7	YC4108ZG	10	0.7	3200×1550×2230
CVFY-10/7	QC4112	10	0.7	3200×1550×2230
VF-13/7	75	13	0.7	2460×1200×1220
VFY-13/7	75	13	0.7	2830×1500×1900
CVF-13/7	YC6108ZG	13	0.7	3300×1350×1470
CVF-13/7	CUMMINS 6BT5.9-C118	13	0.7	3300×1350×1470
CVF-13/7	QC6112	13	0.7	3350×1350×2100
CVFY-13/7	YC6108ZG	13	0.7	3500×1600×2640
CVFY-13/7	CUMMINS 6BT5.9-C118	13	0.7	3500×1600×2340
CVFY-13/7	QC6112	13	0.7	3570×1600×2640
2V-6/7	37	6	0.7	1750×1100×1200
2V-7/7	40	7	0.7	1750×1100×1200
