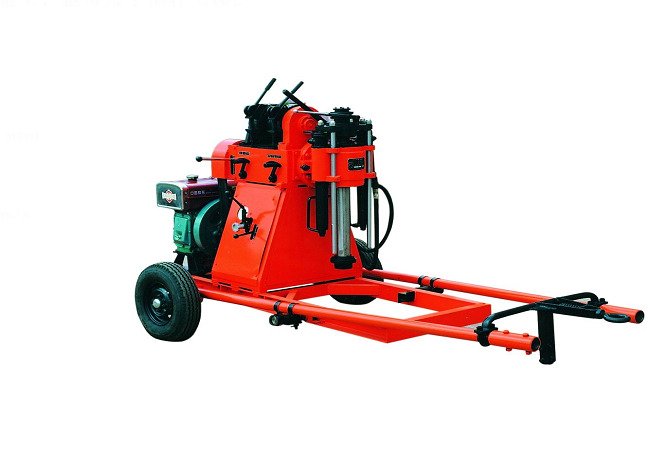

GY-150 Engineering Drilling Rig is a multi-purpose engineering drilling rig suitable for high-speed drilling engineering in complex rock formation.
Applications:
1. Drilling construction for high-rise building, highway, railway, bridge, port, harbor work, dam and tunnel;
2. Small-diameter hole foundation piling drilling;
3. Solid mineral exploration;
4. Anchoring engineering for battered slope;
5. Geothermal pipe-installing for heat pump.
Features:
1. Function of rotary percussive drilling;
2. Wide range for the great angled drill holes from surface and angles in underground drill holes;
3. Easy disassembling for transportation to most inaccessible areas.
4. Good stability and high reliability.
| 1. Drilling Capacity |
| Drilling diameter(mm) | 300 | 76 | 46 |
| Drilling depth(m)) | 45 | 180 | 230 |
| Drill pipe diameter(mm) | 42 |
| Spindle head angle | 0°-360° |
| 2. Rotator |
| Spindle speed(r/min) | 60 200 400 610 1100 |
| Torque max | 1800N·m |
| Spindle feed length | 450mm |
| Spindle thrust max | 20KN |
| Spindle pull max | 30KN |
| 3. Lifter |
| Drum diameter | φ125mm |
| Rope diameter | φ11mm |
| Drum capacity | 26m |
| Lifting capacity(single rope) | 24KN |
| Max. single rope lifting speed(second layer) m/s | 0.20 0.72 1.26 2.8 |
| 4. Oil pump |
| Model | CBF-F420-ALPL |
| Flow | 20mL/r |
| Rated speed | 2500r/min |
| Rated pressure | 20MPa |
| Max. pressure | 25MPa |
| 5. Power | Model | Power | Speed |
| (1)Electromotor | Y160M-4 | 11KW | 1460r/min |
| (2)Diesel engine | ZS1100 | 12.1KW | 2200r/min |
| 6. L×W×H | 2050×1180×1420mm |
| 7. Weight (not including power) | 500kg |
